Raspberry Pi Hi-Fi DAC

Description

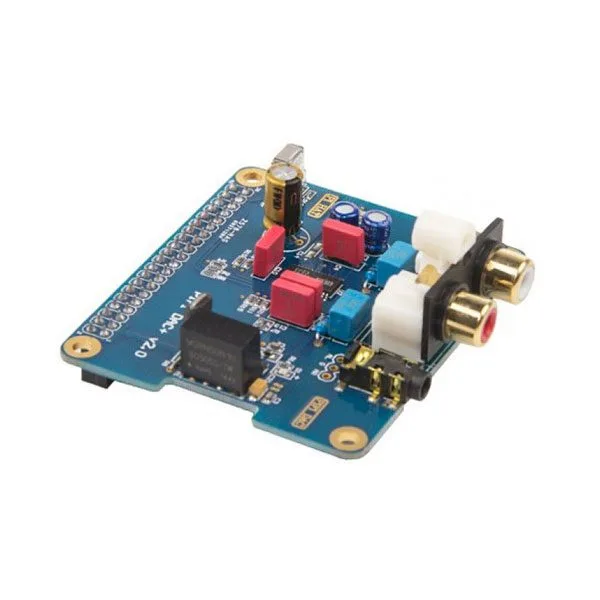

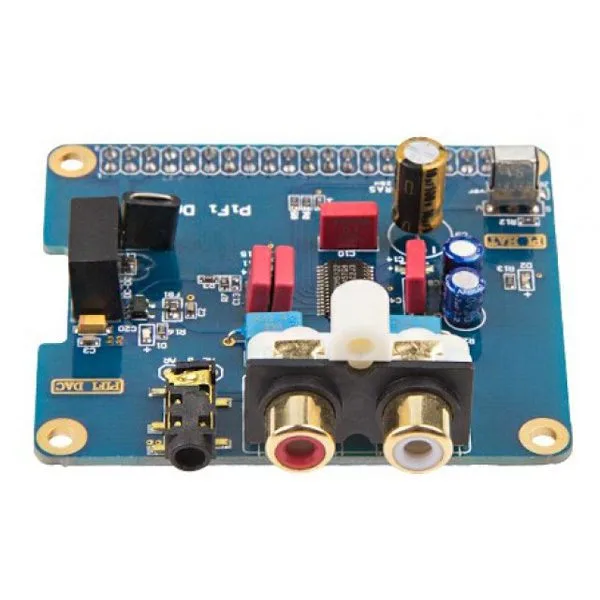

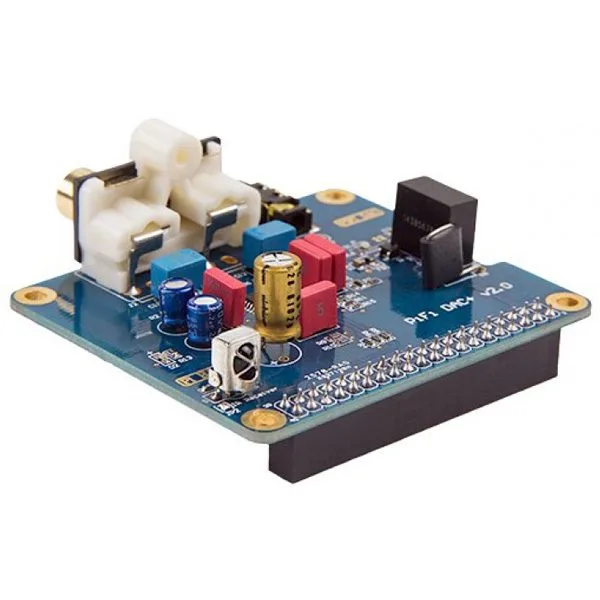

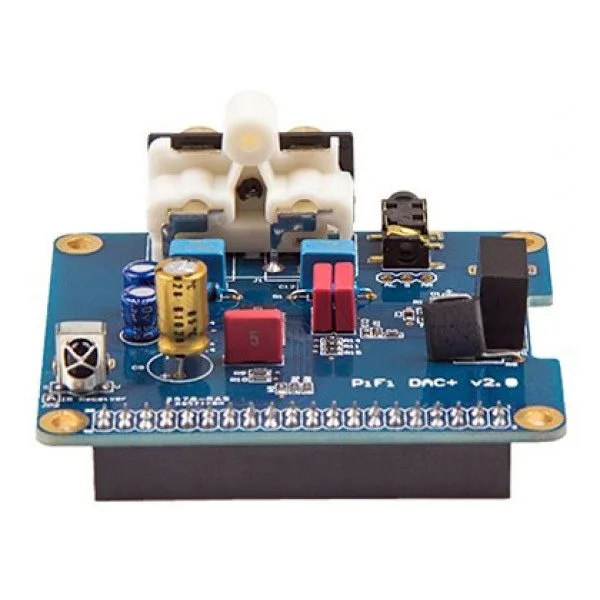

The HIFI DAC+ expansion board, based on the 32-bit DAC chip PCM5122 from Burr-Brown Corporation, with a PCM interface at 384 kHz and I2S data format, allows you to build a Hi-Fi audio player (paired with Raspberry Pi 2B / 3 / 3 B+) that can be controlled over the internet using software such as Volumio, XBMC, etc.

The board uses quality resistors and capacitors, typically found in professional Hi-Fi devices, and supports hardware volume control.

The power supplies for the DAC section and the Raspberry Pi are isolated, reducing noise and delivering crystal-clear sound.

It features a dual gold-plated RCA connector for excellent conductive properties, a gold-plated 3.5 mm jack for the output line (not suitable for headphones, only for power audio amplifiers), status LEDs for DAC power and DAC operation, and an IR receiver.

Note: the package does not include the Raspberry Pi (see related products).

Caratteristiche tecniche

• Uses the PCM5122 DAC chip from Burr-Brown Corporation, 32-bit, with PCM interface at 384 kHz and I2S data format.
• Dual gold-plated RCA connector for excellent conductive properties.
• Gold-plated 3.5 mm jack for the output line (not suitable for headphones, only for power audio amplifiers).
• Quality resistors and capacitors used, typically found in professional Hi-Fi devices:
  – VISHAY resistors (made in the Czech Republic)
  – ELNA RBP2 capacitor (made in Japan)
  – WIMA MKS2 capacitor (made in Germany)
  – ERO KP1830 capacitor (made in Germany)
  – Nichicon FG series capacitor (made in Japan)
  – IR remote interface
