Raspberry Pi Pico Starter Kit

Contains the Pico, an 830-point breadboard and the components for the experiments in the official MicroPython guide.

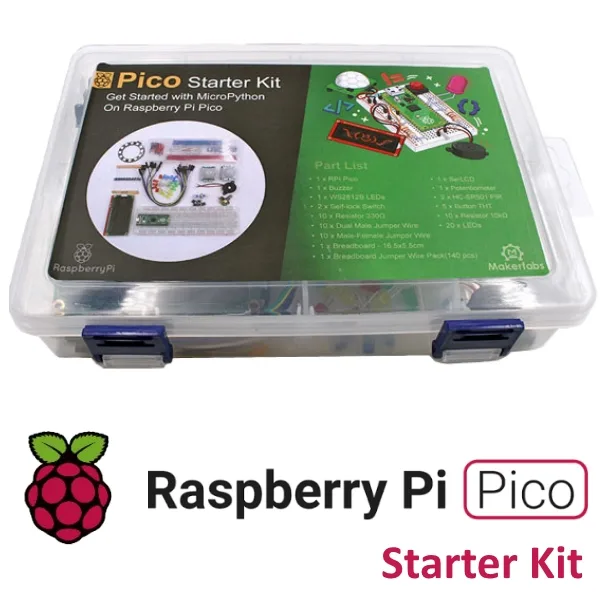

Raspberry Pi Pico Starter Kit - Image 1
Raspberry Pi Pico Starter Kit - Image 3

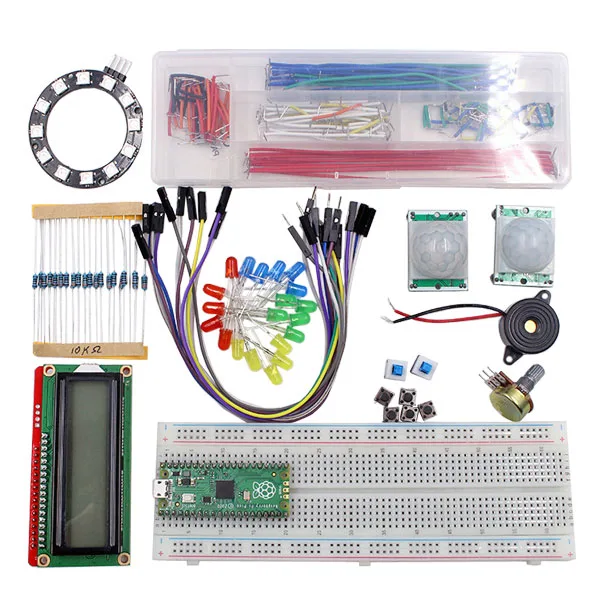

Raspberry Pi Pico Starter Kit - Image 4

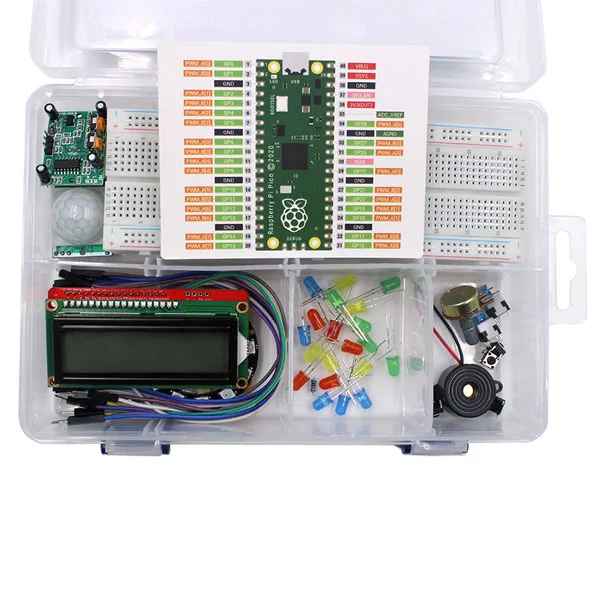

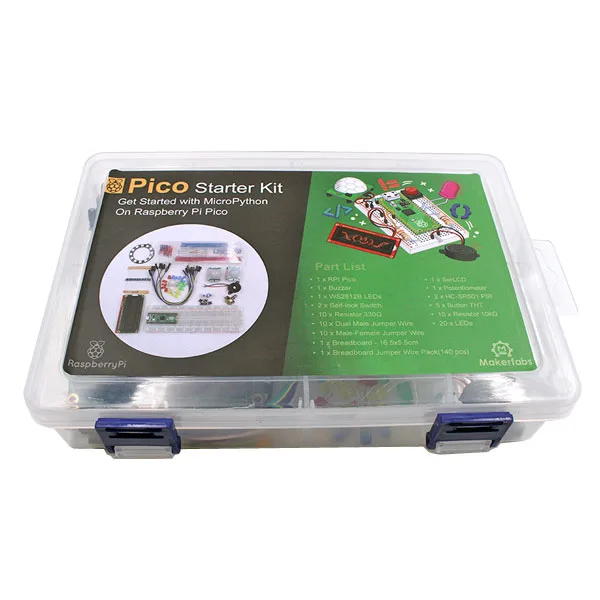

Raspberry Pi Pico Starter Kit - Image 5
Raspberry Pi Pico Starter Kit - Image 6

SKU 3085-RPICOKITEAN 8219671118903Item type: Kit, Starter kit

Description

Starter kit with Raspberry Pi Pico. The package includes a set of electronic components needed to carry out some of the experiments described in the guide “Get Started with MicroPython on Raspberry Pi Pico“.

Kit contents:

  • 01Pc Raspberry Pi Pico
  • 01Pc Serial LCD display
  • 01Pc Buzzer
  • 01Pc Ring with 12 WS2812 RGB LEDs and integrated WS2812B LED driver
  • 01Pc 830-point breadboard (16.5×5.5 cm)
  • 01Pc Set of assorted jumper wires for breadboard (140 pieces)
  • 01Pc Potentiometer
  • 02Pc HC-SR501 infrared sensor
  • 02Pc Push button switch
  • 05Pc Mini push button
  • 10Pc ¼ w 330 ohm resistors
  • 10Pc ¼ w 10 kohm resistors
  • 10Pc Male-male jumper wires
  • 10Pc Male-female jumper wires
  • 20Pc LEDs, assorted colors
  • 01Pc USB cable
Raspberry Pi Pico
Raspberry Pi Pico is a small, fast and versatile board built using the RP2040 chip, a brand-new chip designed by the Raspberry Pi Foundation in the UK. The RP2040 features a dual-core Arm Cortex-M0+ processor with 264 KB of internal RAM and supports up to 16 MB of Flash. It has various GPIOs including I2C, SPI and other special functions. Programmable in C and MicroPython, it can be used in a variety of applications, from controlling a household appliance to running a lighted display.
Raspberry Pi Pico technical specifications
  • RP2040 microcontroller chip designed by the Raspberry Pi Foundation (in the UK)
  • Processor: dual-core ARM Cortex M0+, clock up to 133 MHz
  • 264 kB of SRAM and 2 MB of on-board Flash memory
  • USB 1.1 host and device support
  • Low-power sleep and dormant modes
  • Drag & drop programming
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12 bit ADC, 16 controllable PWM channels
  • Accurate clock and timer
  • Temperature sensor
  • Accelerated floating point libraries on-chip
