Raspberry Pi – PICO

Raspberry Pi Pico is a small, fast and versatile board built using the RP2040 chip, a brand-new chip designed by the Raspberry Pi Foundation in the United Kingdom

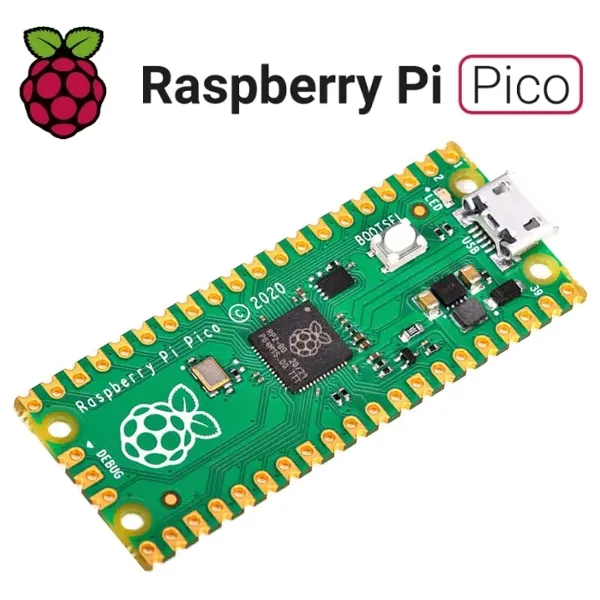

Raspberry Pi - PICO - Image 1
Raspberry Pi - PICO - Image 3
Raspberry Pi - PICO - Image 4
Raspberry Pi - PICO - Image 5
Raspberry Pi - PICO - Image 6

SKU 7310-RPI-PICOEAN 8219671117449Item type: Assembled, Board

Description

Raspberry Pi Pico is a small, fast and versatile board built using the RP2040 chip, a brand-new chip designed by the Raspberry Pi Foundation in the United Kingdom. The RP2040 features a dual-core Arm Cortex-M0+ processor with 264 KB of internal RAM and supports up to 16 MB of Flash. It has several GPIO pins including I2C, SPI and other special functions. Programmable in C and MicroPython, it can be used in a variety of applications, from controlling a home appliance to running a light-up display.
Raspberry Pi Pico
  • RP2040 microcontroller chip designed by the Raspberry Pi Foundation (in the United Kingdom)
  • Processor: dual-core ARM Cortex M0+, clock up to 133 MHz
  • 264 kB of SRAM and 2 MB of on-board Flash memory
  • Support for USB 1.1 host and device
  • Low-power sleep and dormant modes
  • Drag & drop programming
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16 controllable PWM channels
  • Accurate clock and timer
  • Temperature sensor
  • Accelerated floating point libraries on-chip
Raspberry Pi - PICO

click on the image to enlarge
Documentation and useful links
