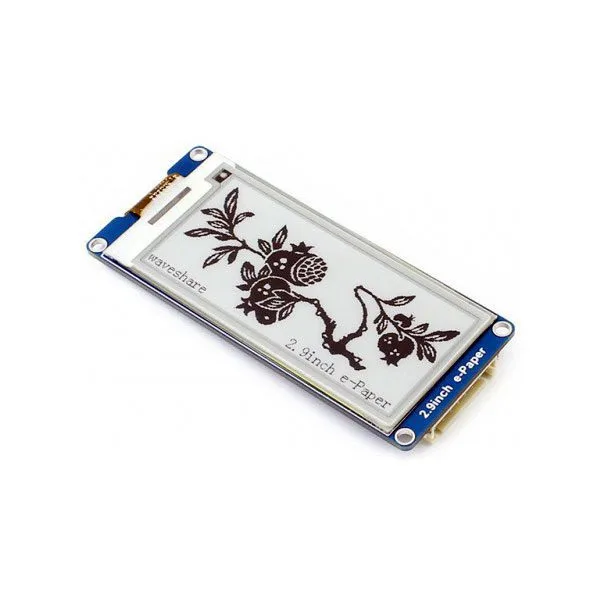

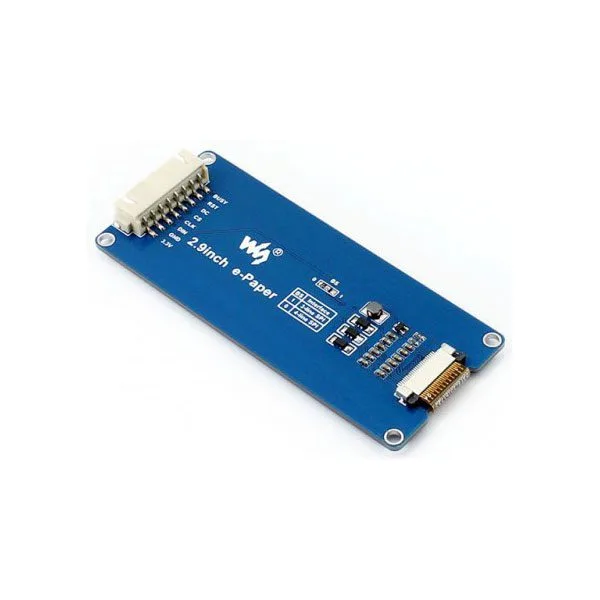

EPAPERUART 2.9 inch e-Paper module 296×128
e-Paper or Paper Ink display (electrophoretic), active matrix TFT
SKU 2850-EPAPERUART29EAN 8219671090575Item type: Assembled, Shields & add-onsArduino, Arduino compatible, Displays, Raspberry Pi
Description
| e-Paper or Paper Ink (electrophoretic) display, active matrix TFT. It has a 2.9 inch active area, a resolution of 296 (H) x 128 (V) pixels, high contrast, a wide viewing angle (>170°), an SPI interface for use with controllers such as Raspberry Pi / Arduino / Nucleo and so on, ultra-low consumption, an anti-glare surface and a sleep mode for low current draw. The Wiki page has examples for Raspberry Pi, Arduino and STM32. |
| Documentation and useful links |
Technical details
| Background colour | white |
|---|---|
| Character colour | black |
| Display resolution | 296 (H) x 128 (V) Pixel |
| Screen size | 1.54" |
| Active area dimensions (mm) | 66.89 (H) x 29.05 (V) |
| Pixel size (mm) | 0.138x0.138 |
| Viewing angle | >170° |
| Interface | SPI |
| partial | 0.3 s |
| full | 2 s |
| Power supply | 3.3 Volt |
| Standby consumption | <0.017 mw |
| Dimensions (mm) | 89.5x38x3 |
| Weight | 20 grams |
