8-Channel ADC Expansion Shield for Raspberry Pi

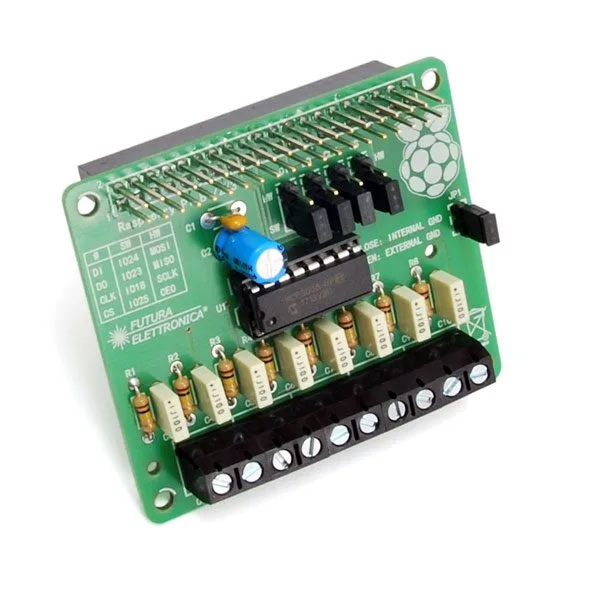

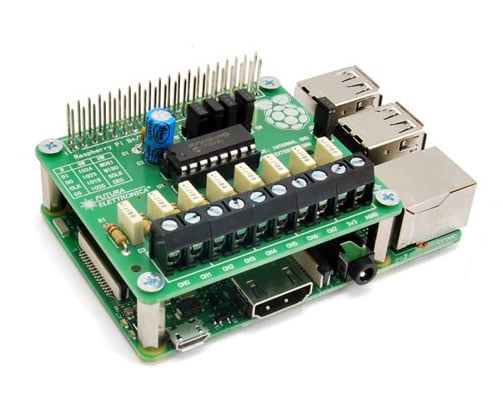

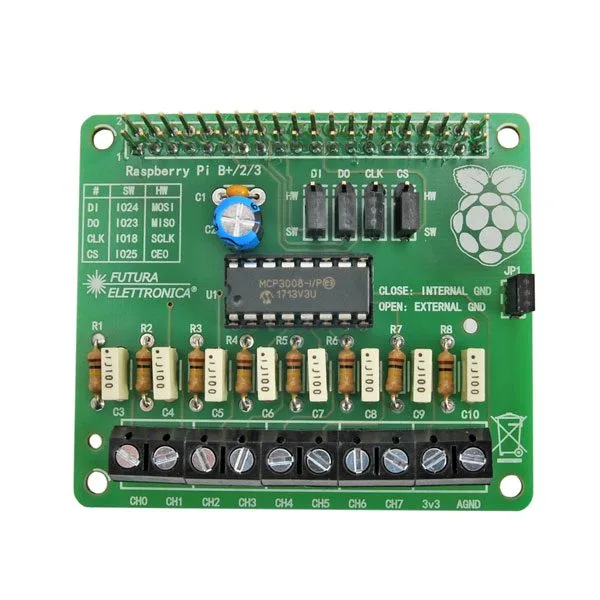

Expansion shield module for Raspberry Pi, based on the 10-bit MCP3008 analogue-to-digital converter, which allows up to 8 input channels to be connected, each one on its own pin
SKU 7100-FT1306KEAN 8219671082648Item type: Kit, Shields & add-onsRaspberry Pi
Description
| Expansion shield module for Raspberry Pi, based on the 10-bit MCP3008 analogue-to-digital converter, which allows up to 8 input channels to be connected, each one on its own pin. Shields of other kinds can be stacked on top of it (two analogue expansion shields cannot be used on the same Raspberry), so that, for instance, a large number of sensors can be interfaced in measurement, diagnostics, environmental monitoring and IoT applications. Voltage resolution: 3.22 mV, input voltage range: 0÷3.3 V, sampling rate: 220 ksps max.
Important! Raspberry Pi not included. |
  |
| Technical specifications |
|
Technical details
| ADC inputs | 8 |
|---|---|
| ADC resolution | 10 bit |
| Voltage resolution | 3.22 mV |
| Input voltage range | 0÷3.3 V |
| Sampling rate | 220 ksps max |
