2-Relay Module 30A 250VAC

Module equipped with 2 power relays that allows you to switch the load connected to them on/off with a maximum current of 30 A (250 VAC/30 VDC)

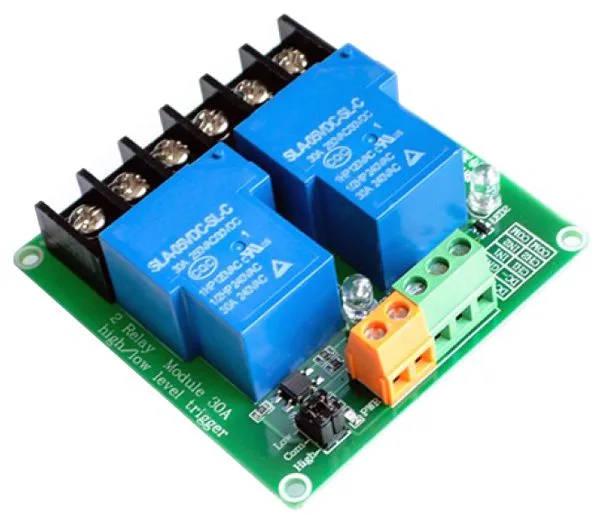

2-Relay Module 30A 250VAC - Image 1

SKU 3085-30A2RLMODEAN 8219671101356Item type: Assembled

Description

Module equipped with 2 power relays that allows you to switch the load connected to them on/off with a maximum current of 30 A (250 VAC/30 VDC). It features opto-isolated inputs, status LED and a jumper to select the input type (high or low level).

It can be controlled directly via Raspberry, Arduino, Fishino or another microcontroller. To control the module, a 5 VDC supply voltage is required, and 3.3/5 VDC for the control logic (IN1 and IN2).

Technical details

Power supply 5 VDC
Number of relays 2
Output contacts N.O. - Common - N.C
Contact rating 30 A 250 VAC or 30 A 30 VDC
Activation voltage 3.3 - 5 VDC
Dimensions (mm) 73x70x22
Weight 91 grams
