NEXTION NX3224T028 2.8-inch Display

NEXTION NX3224T028 2.8-inch Display - Image 1

SKU 3085-NX3224T028EAN 8219671107259Item type: Assembled

Description

The NX3224T028 is a display from the NEXTION family that stands apart from conventional displays thanks to its on-board microcontroller, flash memory, SD card slot for loading your project's firmware, 4-pin TTL serial interface and free software (Nextion Editor) written specifically for laying out the graphics (buttons, progress bars, images, text, etc.). It has 4 MB of flash memory, a 2.8" resistive touch screen, 320x240 pixel resolution and 65,536 colours.
The NX3224T028 is a display from the NEXTION family that stands apart from conventional displays thanks to its on-board microcontroller, flash memory, SD card slot for loading your project’s firmware, 4-pin TTL serial interface and free software (Nextion Editor) written specifically for laying out the graphics (buttons, progress bars, images, text, etc.). It has 4 MB of flash memory, a 2.8″ resistive touch screen, 320×240 pixel resolution and 65,536 colours.

Ideal for building process monitoring and control applications and for showing data, photos and video, it can be used with Arduino, Raspberry Pi and other microcontrollers.

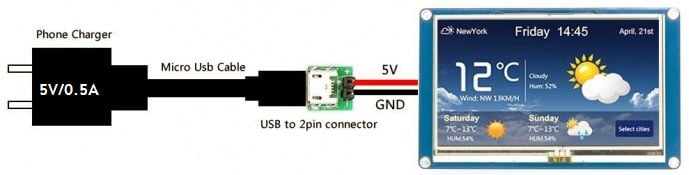

The package includes the touch screen display module, the 4-wire cable with connector and the micro USB power adapter.
The Nextion displays

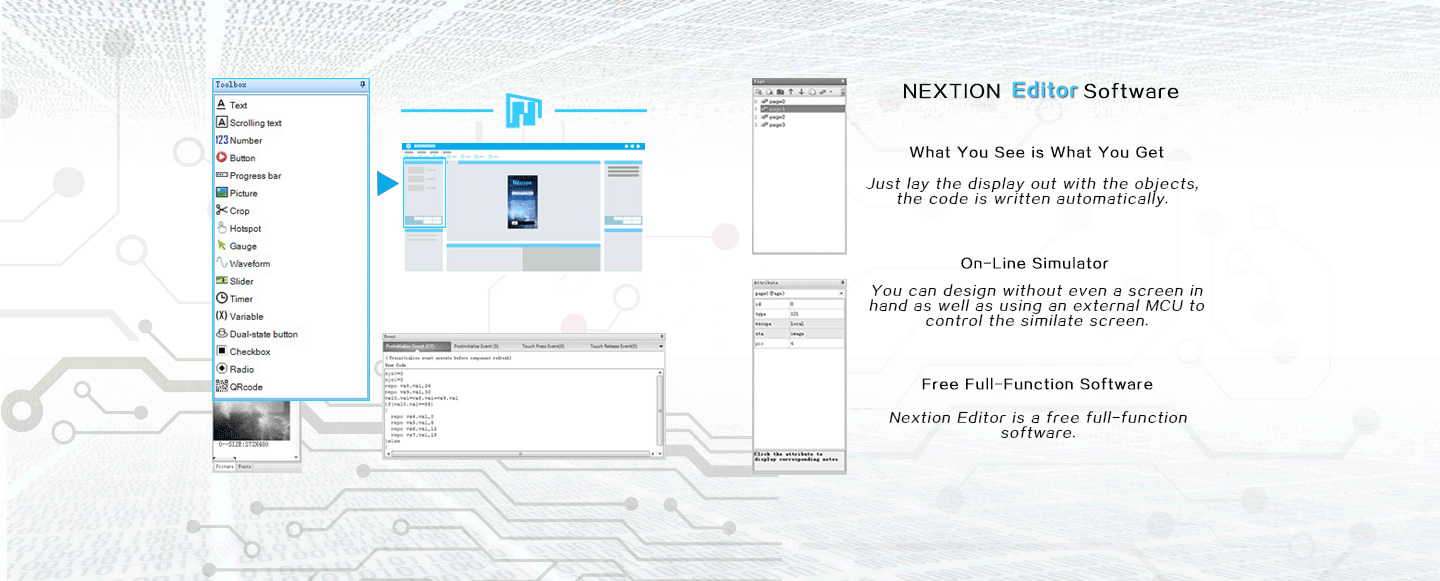

NEXTION is a Human Machine Interface (HMI) solution that combines a TFT touch display with a microcontroller and memory. Using the NEXTION Editor software you can rapidly develop the HMI GUI by dragging in components (graphics, text, button, slider, etc.) and text-based ASCII instructions to code the way the components interact on the display. With just 2 wires (RX, TX), the NEXTION display connects quickly to the microcontroller over 5 V TTL serial.

NEXTION offers a cost-effective Human Machine Interface solution.
NEXTION guarantees the availability of every product in the series for a minimum of 5 years (from 2016), with CE and RoHS compliance certification.
Technical specifications
  • TFT display with resistive touch screen
  • Viewing area 57.6 (L) x 43.2 (W)
  • 320×240 pixel resolution
  • 65,536 colours
  • 4 MB Flash memory for user applications and data
  • SD card slot for firmware updates
  • Compatible with Arduino, Fishino, Raspberry Pi
  • 4-pin TTL serial interface
  • Adjustable brightness
  • Power supply: 5 VDC 65 mA
Documentation and useful links

Technical details

Power supply 5 VDC
Display size (mm) 85x50x12
Viewing area size (mm) 57.6 (L) x 43.2 (W)
Weight 38 grams
