5 Mpx Camera for Raspberry Pi

Small module for the Raspberry Pi with a 5 megapixel camera (Omnivision 5647)

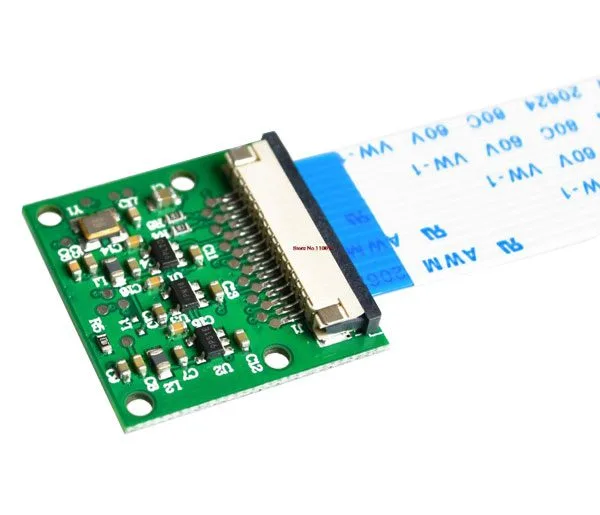

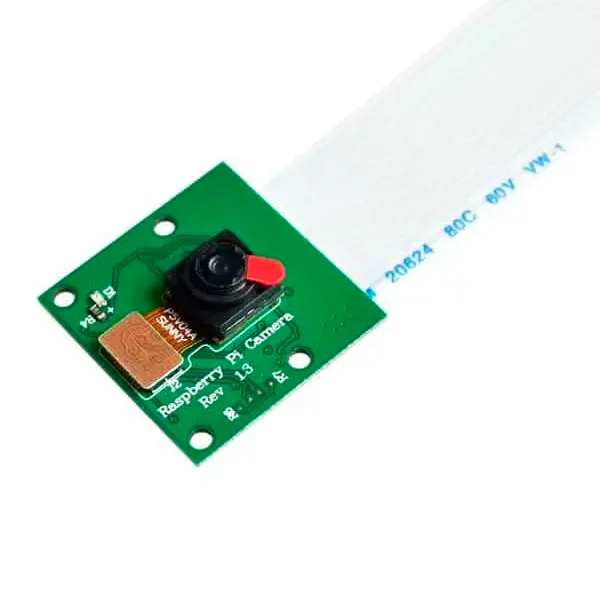

5 Mpx Camera for Raspberry Pi - Image 1
5 Mpx Camera for Raspberry Pi - Image 3
5 Mpx Camera for Raspberry Pi - Image 4

SKU 8300-YG016EAN 8219671098052Item type: Assembled, Shields & add-ons

Description

Small module for the Raspberry Pi with a 5 megapixel camera (Omnivision 5647). It takes stills at a resolution of 2592×1944 pixels. The little module, only 25x24x9 mm and weighing 3 grams, also shoots HD video in 1080p at 30 fps, so Raspberry Pi users can build video applications with it. The module plugs into the CSI connector and is controlled over the I²C bus.

Note: it has no microphone for audio.

Technical details

Image sensor OmniVision OV5647 (5 megapixel)
Image resolution 2592x1944 pixels
Video resolution 1080p at 30 fps with H.264 (AVC) codec
Lens 3.6 mm / f2.9
Dimensions (mm) 25x24x9 (flat cable not included)
