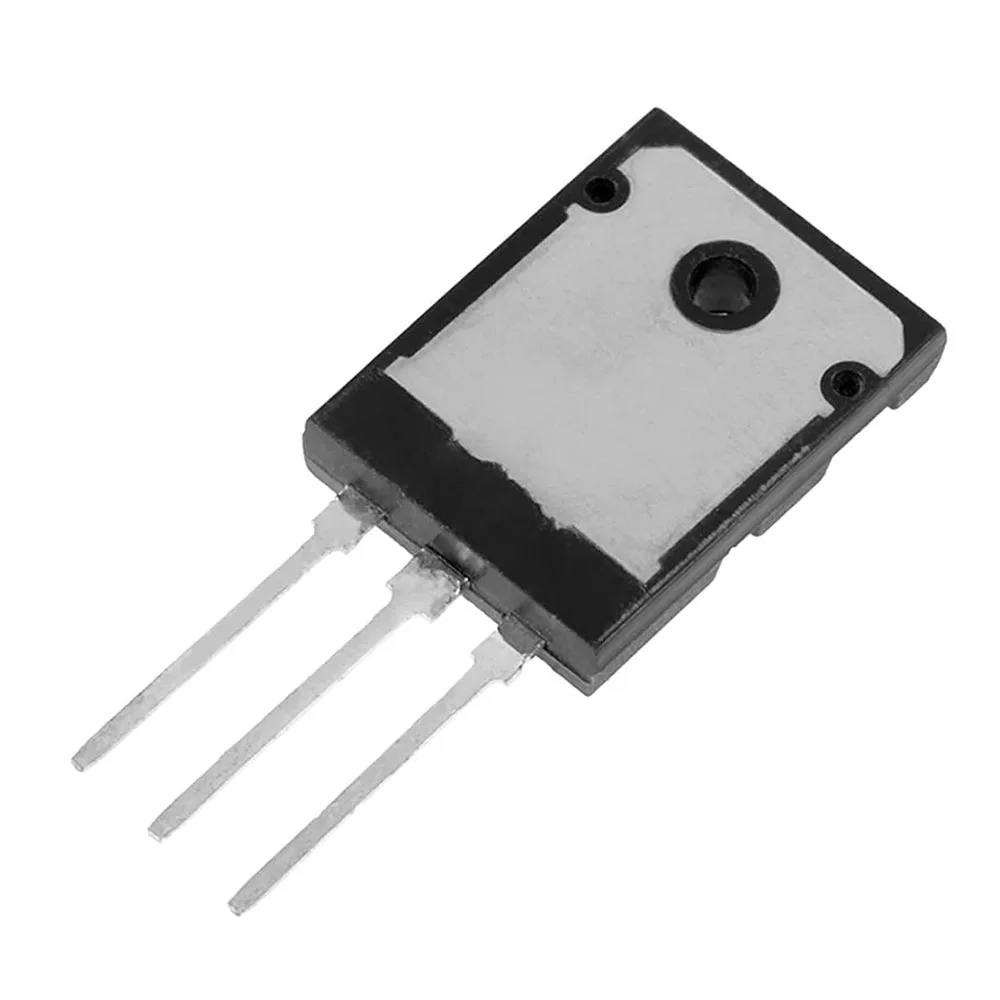

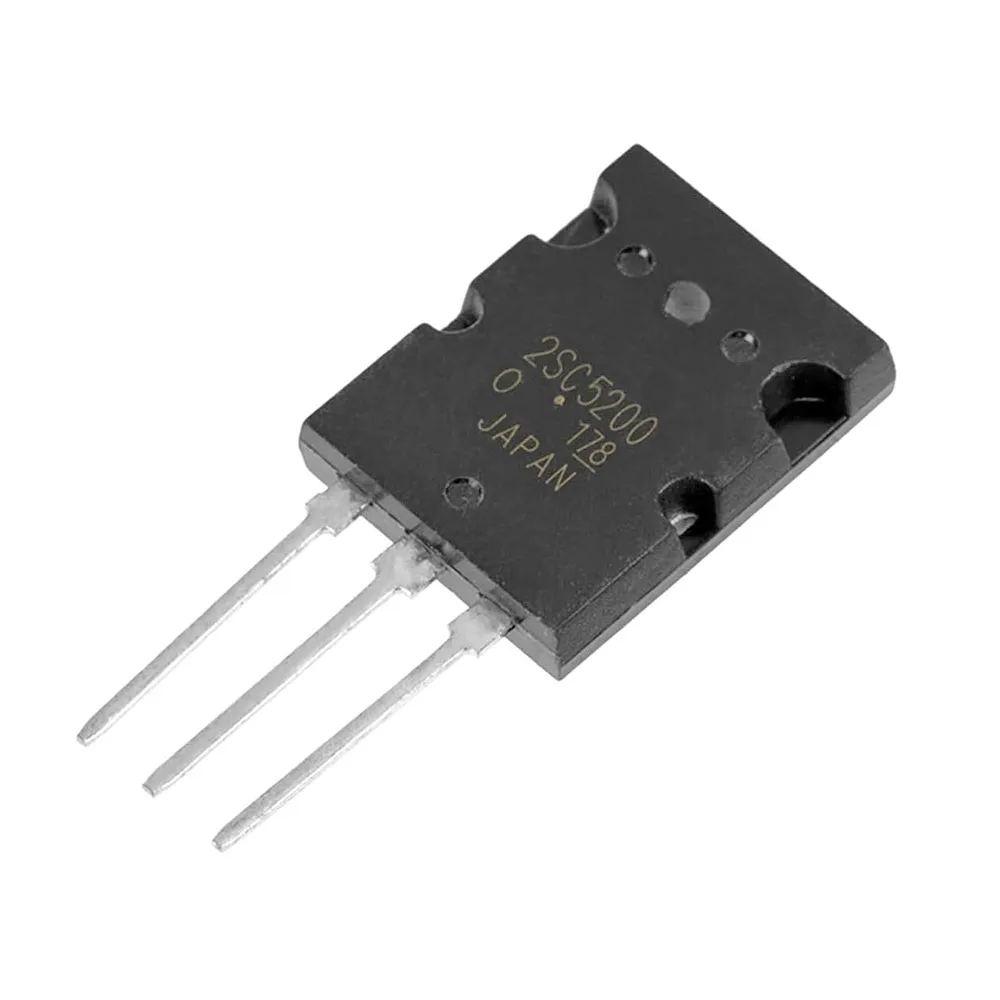

2SC5200-O – NPN power transistor 230V / 15A, TO-264 package
2SC5200-O NPN power transistor with a 230V breakdown voltage, current up to 15A and TO-264 package. Ideal for high-power applications such as hi-fi audio amplifiers, power supplies and power circuits.
SKU 1100-2SC5200-OEAN 8219671121026Item type: AssembledMOSFETs, transistors & diodes
Description
| The 2SC5200-O is a high-performance silicon diffused-junction NPN transistor, designed for applications calling for high voltage, high current and thermal stability. With a VCEO breakdown voltage of 230 V, a collector current of up to 15 A and a power dissipation of 150 W, it suits high-power duties such as hi-fi audio amplifiers, power supplies and general power circuits.
The class “O” selection guarantees consistent gain, which also makes it ideal in push-pull configurations, paired with its complementary 2SA1943-O. With a transition frequency of 30 MHz, low saturation voltage and low output capacitance, it delivers fast response and high efficiency. The TO-264 package, with its large heat-dissipating surface, makes it suitable even under heavy thermal load. |
| Key features |
|
Technical details
| Type | silicon diffused-junction NPN transistor |
|---|---|
| Collector-emitter voltage (VCEO) | 230 V min |
| Collector current (IC) | 15 A |
| Power dissipation (Pc) | 150 W (Tc = 25°C) |
| Transition frequency (fT) | 30 MHz typical (VCE = 5 V, IC = 1 A) |
| Junction temperature (Tj) | 150 °C |
| Package | TO-264 |
| Gain class | "O" |
