BC337 – NPN Bipolar Junction Transistor (BJT) – 45V-0.8A

The BC337 NPN transistor is a versatile and reliable component, perfect for amplification, switching and power management applications.

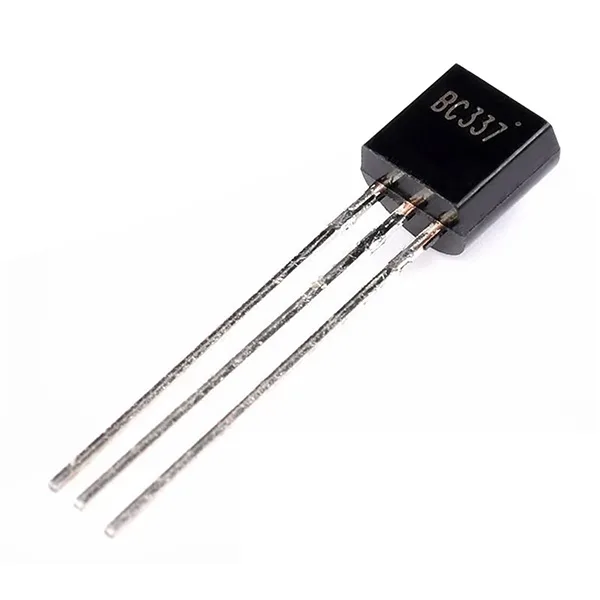

BC337 - NPN Bipolar Junction Transistor (BJT) - 45V-0.8A - Image 1

SKU 1100-BC337EAN 5410329253431Item type: Assembled

Description

NPN bipolar junction transistor (BJT), ideal for many electronic applications such as signal amplifiers, relay drivers, switches and power management circuits.
Technical specifications
  • Transition frequency (fT): approximately 100 MHz, making it suitable for some high-frequency applications as well

Technical details

Type NPN
Collector current (Ic) up to 800 mA
Collector-emitter voltage (Vce) up to 45 V
Current gain (hFE) typically between 100 and 630, depending on the model and collector current
Power dissipation typically up to 625 mW
