3-Axis Accelerometer with ADXL345

Analog 3-axis accelerometer based on the ADXL345 chip by Analog Devices

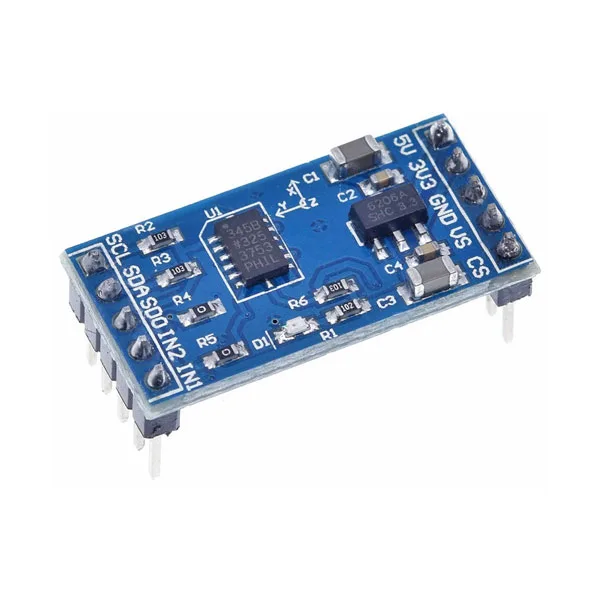

3-Axis Accelerometer with ADXL345 - Image 1

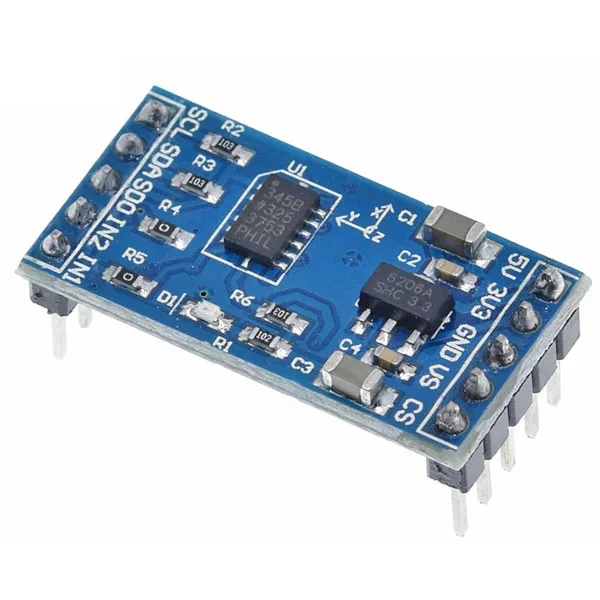

3-Axis Accelerometer with ADXL345 - Image 3

SKU 2846-ADXL345MODEAN 8219671118873Item type: Assembled,

Description

Analog 3-axis accelerometer based on the ADXL345 chip by Analog Devices. Measurement range from 2 to 16 g (selectable), resolution up to 13 bits at ±16 g, supply voltage: 3.3 / 5 VDC. Features an SPI (3 or 4-wire) or I2C communication interface, auto-sleep mode, standby mode.
The board is supplied fully assembled and tested.
Documentation and useful links

Technical details

Measurement range (selectable) 2 g / 4 g / 8 g / 16 g
Power supply 3.3 V / 5 V
Resolution up to 13 bits at ±16 g
Connector 2.54 mm pitch
Operating temperature from -40°C to +85°C
Dimensions (mm) 27.5x14x11
