3-axis accelerometer

Digital 3-axis accelerometer based on the Freescale MMA8452Q sensor

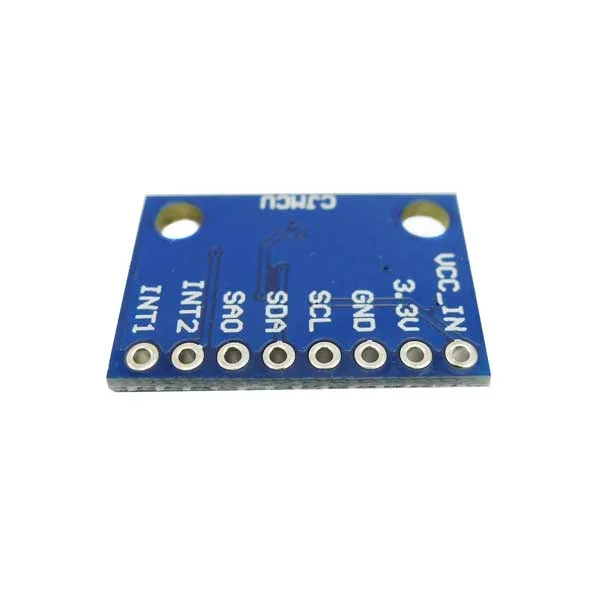

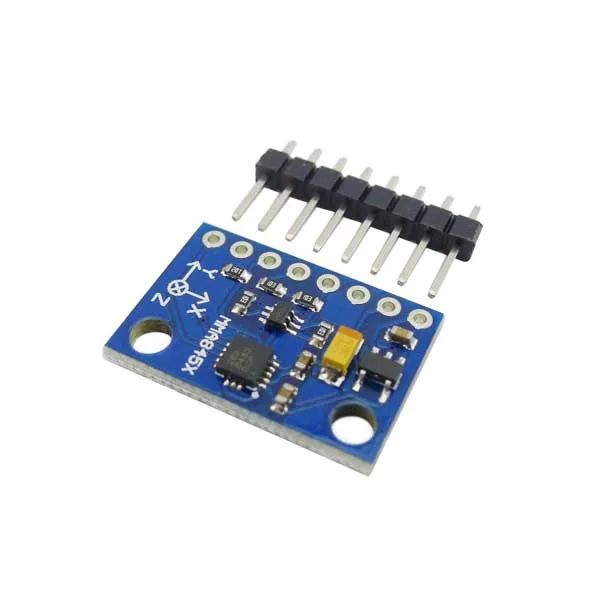

3-axis accelerometer - Image 1

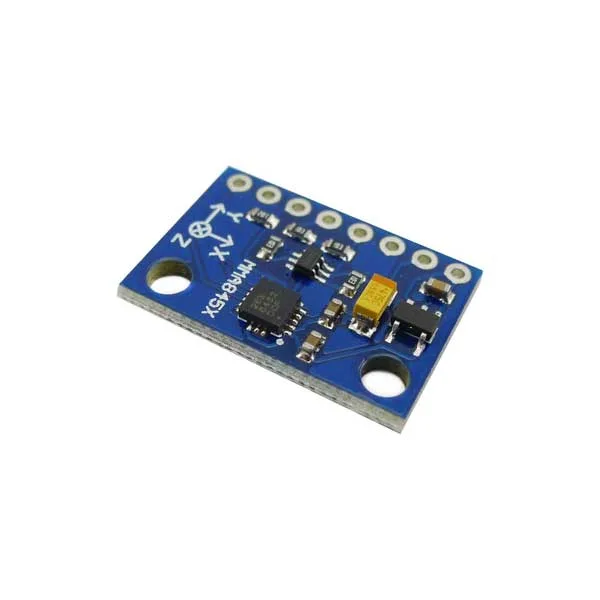

3-axis accelerometer - Image 3

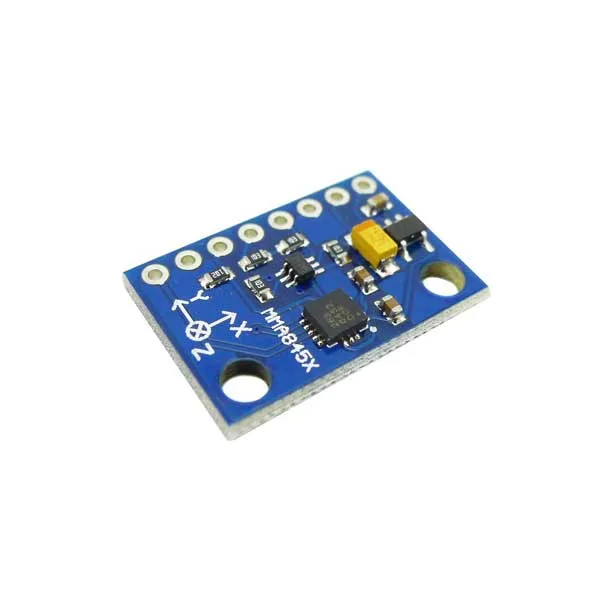

3-axis accelerometer - Image 4

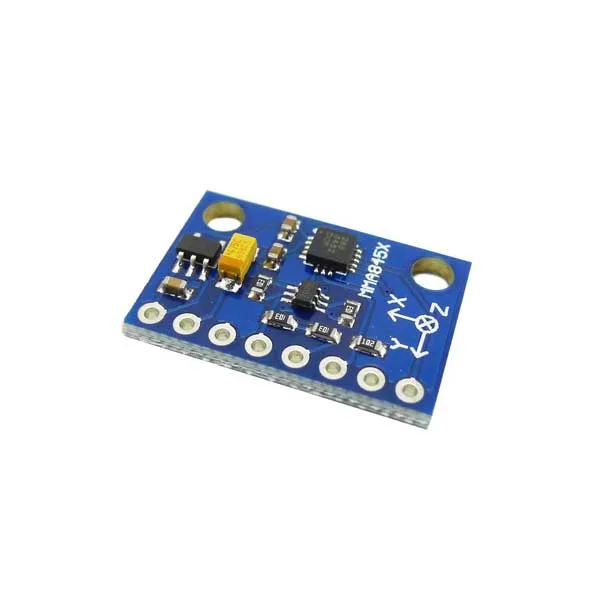

3-axis accelerometer - Image 5
3-axis accelerometer - Image 6

SKU 2846-MMA8452EAN 8219671080774Item type: Assembled,

Description

3-axis digital accelerometer based on the Freescale MMA8452Q sensor. Measurement ranges 2g, 4g, and 8g, power supply: from 3.6 VDC to 5 VDC, consumption: max. 165 µA. It features two programmable interrupt pins, automatic sleep and wake-up modes, and signal conditioning with a high-pass filter. It integrates a level shifter for the SDA and SCL lines to adapt the 3.3V levels of the IC to the communication levels used to talk to the MMA8452 (max. 5V). Dimensions (mm): 23×16.6. The board is supplied already assembled and tested.

Electrical schematic

Technical details

Accelerometer measurement range ± 2g / ± 4g / ± 8g
Interface I²C
Output digital, 8 and 12 bit
Output data rate (ODR) range 1.56 Hz to 800 Hz
Noise 99µg / √Hz
Power supply from 3.6 VDC to 5 VDC
Consumption from 6 µA to 165 µA
Operating temperature from -40°C to +85°C
Dimensions (mm) 21x14
Weight 6 grams
