30A Speed Controller for Brushless Motors

Speed Controller for Brushless Motors. Ideal for drones, model aircraft and radio-controlled vehicles. Maximum current capacity 30A. 2-4S LiPo BEC at 5V/2A. Voltage range 4V-16V.

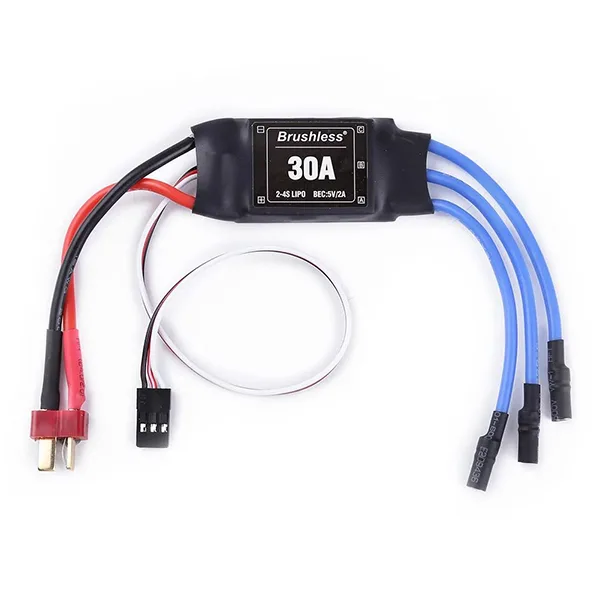

30A Speed Controller for Brushless Motors - Image 1

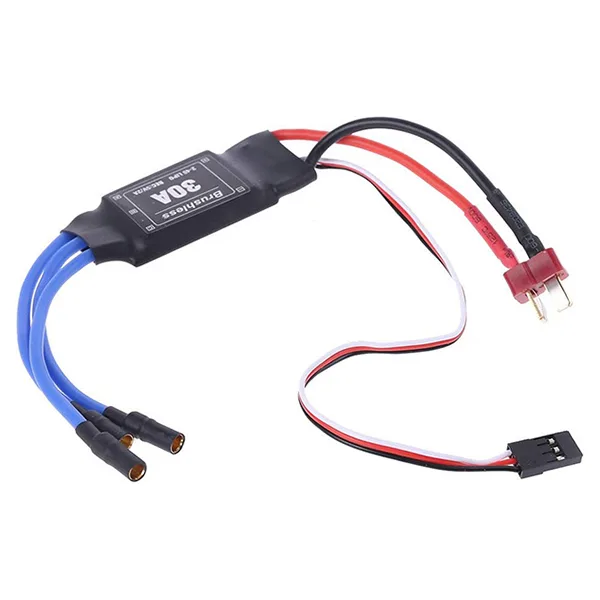

30A Speed Controller for Brushless Motors - Image 3

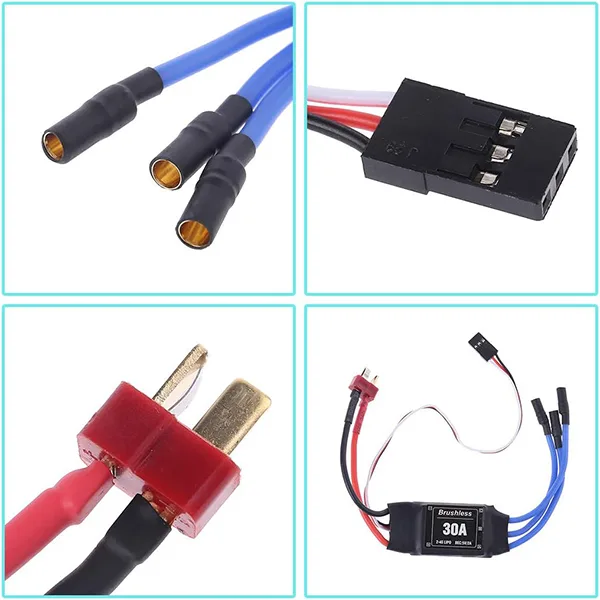

30A Speed Controller for Brushless Motors - Image 4

SKU 1606-ESC30AEAN 8219671059664Item type: Assembled

Description

Speed Controller for Brushless Motors with a maximum current capacity of 30A and a 2-4S LiPo BEC at 5V/2A. It provides precise, reliable speed control for brushless motors. Ideal for drones, model aircraft, radio-controlled vehicles and more. This controller supports a voltage range from 4V to 16V, offering power versatility for different applications.

Technical details

Operating current 30A (continuous), 35A (burst), 40A max (for 10 seconds)
Dimensions 45 x 24 x 11 mm
Weight 25 grams (cables included)
Voltage range 4V-16V
Supported battery count 2-4S LiPo (Note: 4S LiPo does not allow BEC output)
BEC output 2A (continuous), 3A (burst)
Supported servos 2S LiPo for 4-5V mini servos, 3S LiPo for 3-4V micro servos
