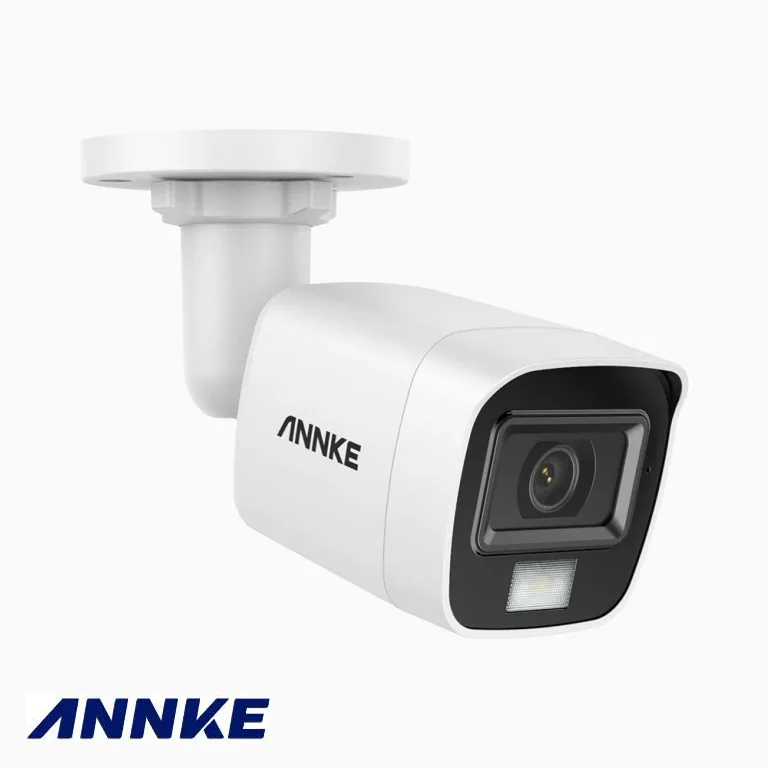

3K 4-in-1 Bullet Camera

Captures high-definition video at 3K (2960 x 1665) resolution thanks to its 3K CMOS sensor. Its real strength is the night lighting system: Dual Light technology uses two powerful infrared LEDs (EXIR) plus an additional White Light .

Smart Night Mode: Normally the IR illuminator gives a clear view up to 25 metres. As soon as a person or a vehicle is detected, the system switches automatically to White Light, delivering colour images and acting as a visual deterrent (up to 20 metres). This behaviour can be set freely between Smart / IR / White Light.

Thanks to its built-in microphone, the camera carries the audio on the same cable that carries the video signal. Because it works in 3K, this camera has to be paired with recorders able to handle 3K resolution, using its 4-in-1 output (TVI/AHD/CVI/CVBS).

Please note: The camera works only with DVRs that support 3K resolution or higher (not compatible with 5Mpx DVRs). The power supply is not included (see related products).

• Video Technologies: Digital WDR (DWDR), IR Cut Filter (Yes)
• Power Supply: 12 Vdc
• Consumption: Max. 2.9 W
• Operating Temperature: From -40°C to 60°C
• Material: Plastic
• Colour: White
• Dimensions: 138.8 x 60.9 x 57.9 mm
• Weight: Approximately 155g

• I have connected the device to the monitor, but I get no signal.
  The monitor accepts a CVBS signal, so as the camera is a 4-in-1 model it has to be set to the correct, compatible signal. With the camera powered up, press and hold the button for about 4 seconds: the signal switches between the 4 available ones, so repeat until the video image appears.

• I have connected the device to the DVR, but I get no signal.
  If the DVR is a 4-in-1 model it has to support the camera resolution, so check this first. The DVR may also not accept all 4 signals, so with the camera powered up press and hold the button for about 4 seconds: the signal switches between the 4 available ones, so repeat until the video image appears.
