4 x 8×8 LED Matrix Display with MAX7219 – Red LEDs

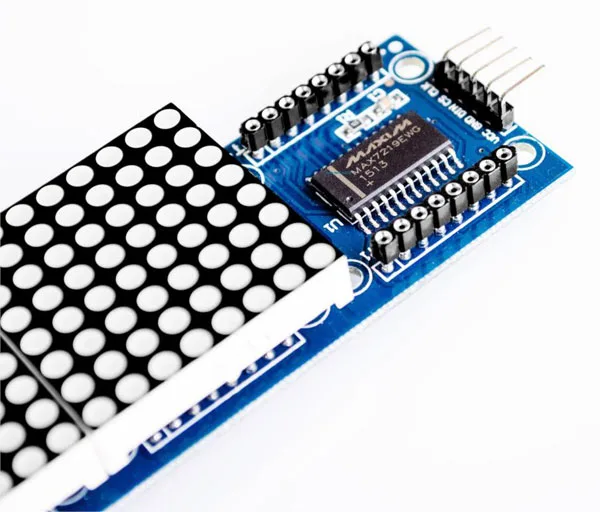

Module made up of 4 matrix displays of 64 red 3 mm common-cathode LEDs (8x8), driven by the MAX7219 chip
SKU 8300-YB302EAN 8219671105361Item type: AssembledDisplays
Description

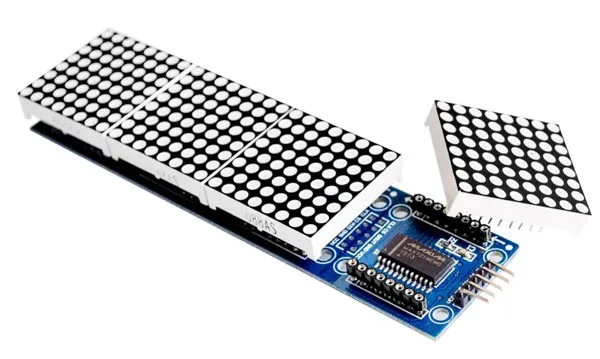

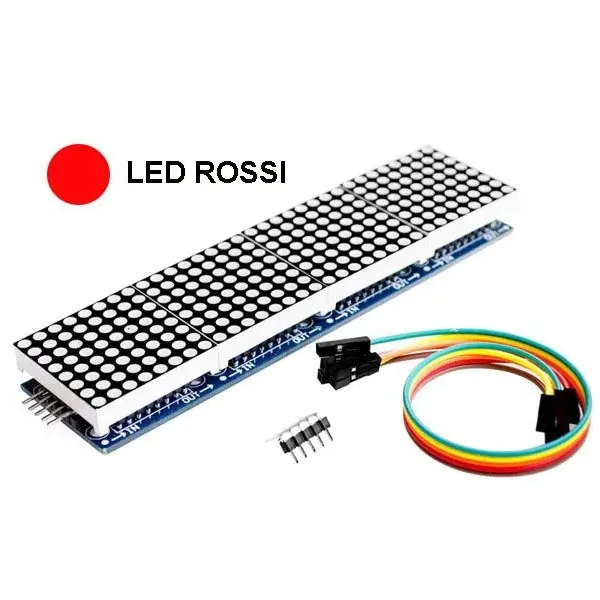

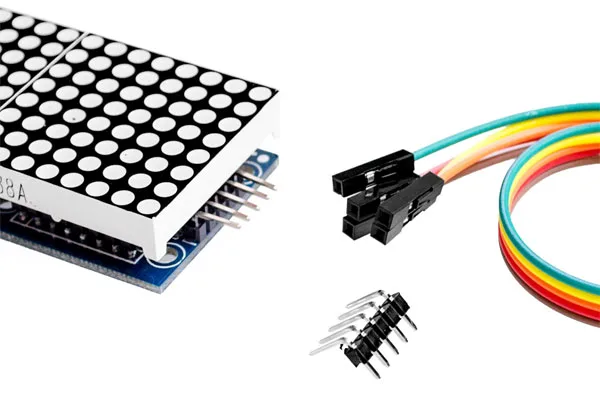

Module composed of 4 matrix displays made up of 64 LEDs (8×8) red, 3 mm, common cathode, and managed by the MAX7219 IC. It can be controlled via Arduino or other microcontroller, through the pins (VCC, GND, DIN, CS, and CLK) and can display letters, numbers, and symbols. Multiple modules can be daisy-chained. Power supply: 5 V, dimensions (mm): 128x32x13. The package includes the module with the 4 matrix displays, a 5-pin strip to connect other modules in cascade, and a 5-wire jumper.
Documentation and useful links
- Datasheet MAX7219
- MD_parola (Arduino library)
