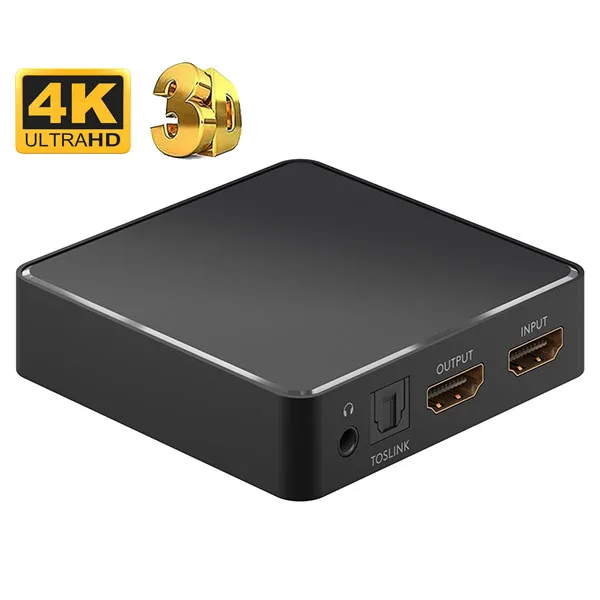

4K HDMI Audio Extractor with Optical Output and 3.5 mm Jack

Audio is delivered in a range of digital formats, among them Dolby Atmos, Dolby TrueHD, DTS-HD, Dolby Digital 5.1 and 7.1, LPCM and stereo. The unit has two audio outputs: a Toslink socket (optical fibre) and a 3.5 mm jack socket (3 pin, stereo), giving you maximum flexibility when connecting different audio equipment.

The extractor passes the signal on to the television without interference, so the picture comes through untouched. That way you enjoy sharp, detailed images on your television or projector without giving up superb, involving sound.

Installing the audio extractor could not be simpler thanks to its Plug & Play design, which lets you connect it without extra drivers or complicated set-up.

The sturdy aluminium case gets rid of heat effectively, keeping the unit at the right temperature for long-term performance. The gold-plated connectors also protect against corrosion and ensure high-quality signal transfer, with no degradation.

• High-quality audio transfer: connect your HDMI home entertainment or gaming system to external audio equipment for flawless sound. The audio extractor sends the best digital and analogue audio quality to devices that have no HDMI connection of their own, such as headphones, hi-fi systems, soundbars or TVs.
• 4K compatibility: thanks to its HDMI output, this audio extractor supports video resolution up to 4K @ 30 Hz. You get high-resolution pictures while the sound is passed on without compromise.
• Plug & Play: the audio extractor is ready to use straight away. There are no extra drivers to install and no complicated set-up. Just connect your devices and enjoy better sound.
• Compact, sturdy design: its compact format lets the extractor sit discreetly in the room. The sturdy aluminium case not only looks smart, it also disperses heat effectively. The connections on the rear also make cable management easier.
• Gold-plated connectors: gold-plated connectors protect against corrosion and ensure high-quality signal transfer. You can count on reliable sound, free of interference.

• • • Signal transfer:
      • Supported video standards: 4K Ultra HD 2160p (30 Hz), Full HD 1080p (60 Hz), Full HD 1080i (60 Hz), 3D
      • Supported audio standards: Dolby Atmos, Dolby Digital HD (DTS HD), Dolby Digital TrueHD, Dolby Digital 5.1 (AC-3), Dolby 5.1, Dolby 7.1, LPCM, Stereo, Audio Return Channel (ARC)
    • Connections:

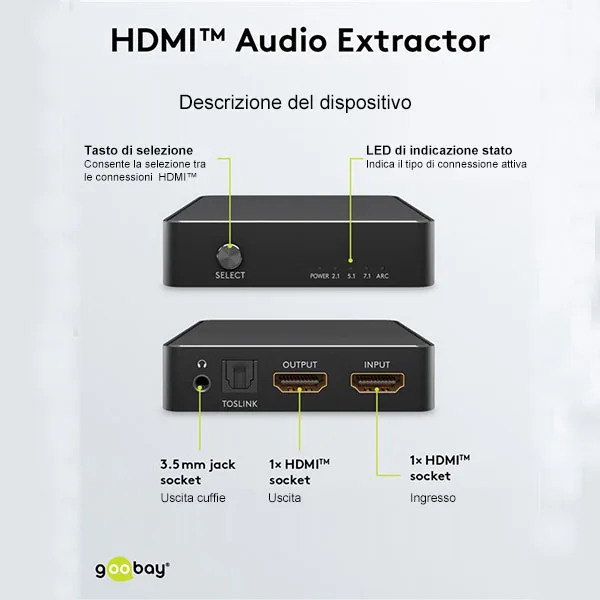

      • Outputs: HDMI socket (type A), Toslink socket, 3.5 mm jack socket (3 pin, stereo)

• 4K audio extractor

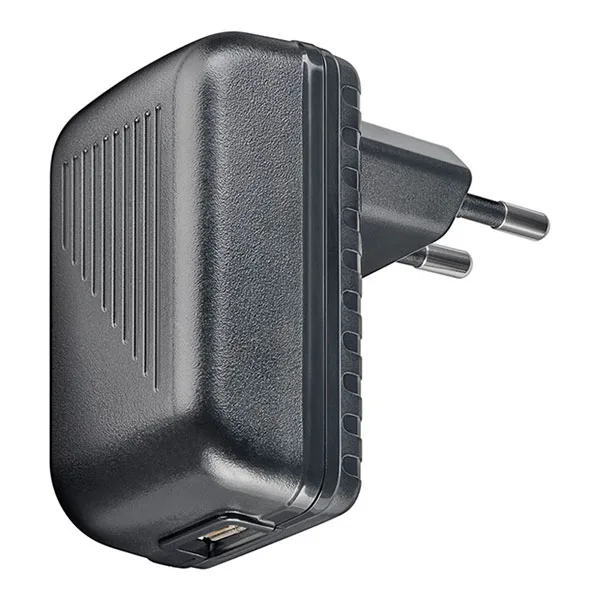

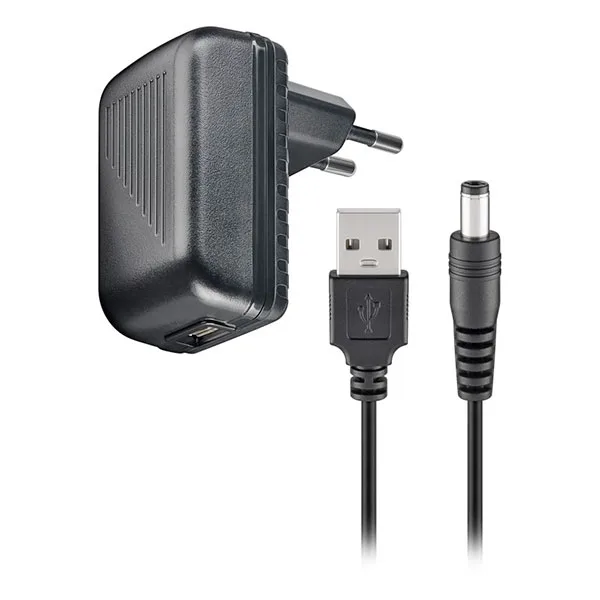

• Mains adapter 240Vac / 5Vdc / 0.4A
• User manual
