5.5kg/cm Servo Motor, Plastic Gears, 180°

42.5 gram analogue servo with accessories included, powered from 4.8 to 6 Vdc: turns 60 degrees in 0.19 seconds.
5.5kg/cm Servo Motor, Plastic Gears, 180° - Image 1
5.5kg/cm Servo Motor, Plastic Gears, 180° - Image 3
5.5kg/cm Servo Motor, Plastic Gears, 180° - Image 4

SKU 7300-SERVO209EAN 8219671018166Item type: Assembled

Description

Analogue servo complete with accessories. Power supply: 4.8 VDC to 6 VDC, torque at 4.8 V: 5.5 kg·cm, torque at 6 V: 6.5 kg·cm, rotation: 180°, speed at 4.8V: 0.19 sec/60° no load, speed at 6 V: 0.15 sec/60° no load. Dimensions (mm): 40.6×39.5×20, weight: 42.5 grams, operating temperature: -20°C to +60°C.
CONNECTIONS



Technical details

Power supply 4.8 VDC to 6 VDC
torque at 4.8 V 5.5 kg·cm
torque at 6 V 6.5 kg·cm
rotation 180°
speed at 4.8V 0.19 sec/60° no load
speed at 6 V 0.15 sec/60° no load

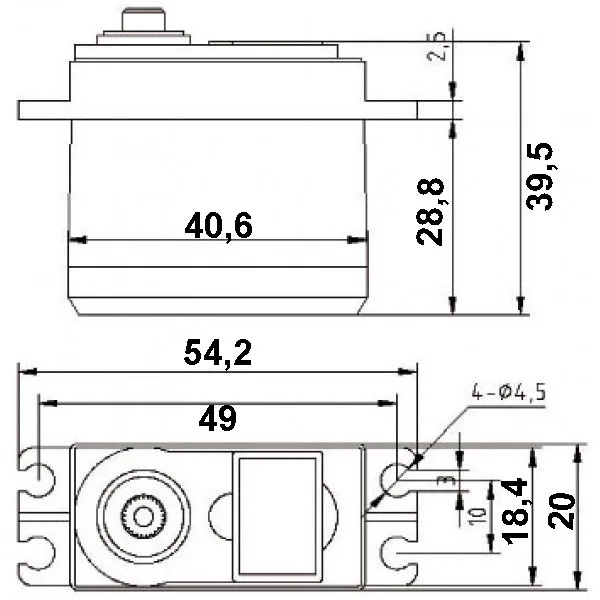

Dimensions (mm) 40.6x39.5x20
weight 42.5 grams
operating temperature -20°C to +60°C
