5MPX 4-in-1 Miniature Camera – Pinhole Lens
Day & Night colour miniature camera, 5MPX, multi-standard (HDTVI, HDCVI, AHD, Analog).
SKU 8100-FR835EAN 8219671106801Features: 4-in-1 signal (CVBS/AHD/TVI/CVI)Colour: BlackFormat: Other formatsMaterial: MetalResolution: 5 MpxConnection type: Coaxial cableCameras
Description
|

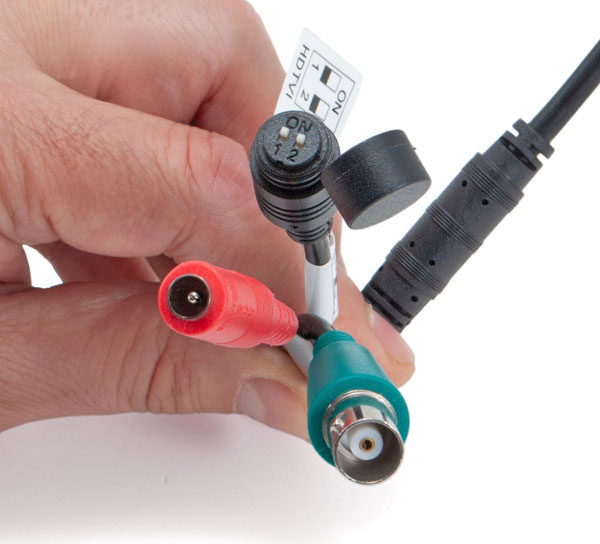

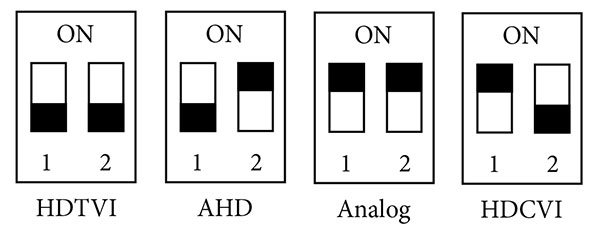

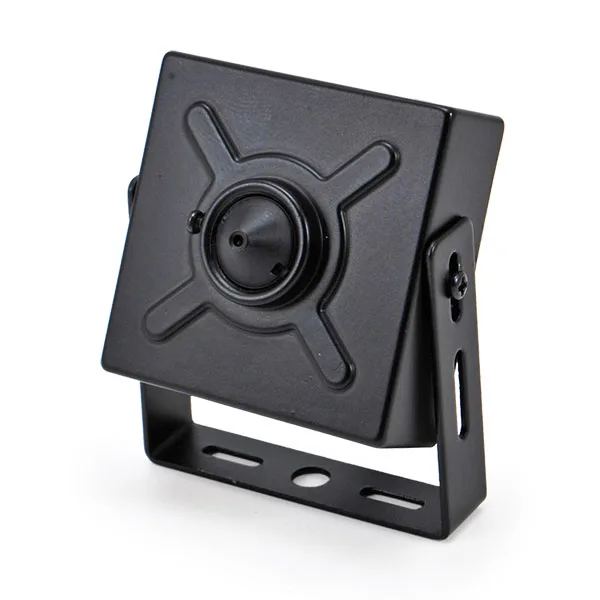

Day & Night colour miniature camera, 5MPX, in a tiny 36×36 mm body with a 3.7 mm pinhole lens. The camera is multi-standard and can be set to analogue/CVBS, TVI, CVI or AHD mode. Resolution 5 Mpx, metal housing with mounting bracket. Power supply 12 VDC, BNC output connector. Please note: the camera is shipped in AHD mode; to change the mode you have to set the dip-switches.
|
|
Technical specifications
|
|
Technical details
| Sensor | SONY CMOS sensor (IMX335+FH8538) 1/2.8" |
|---|---|
| Lens | f = 3.7 mm pinhole |
| System | PAL |
| Sync | internal |
| Resolution | 5 MPX@25fps |
| Effective pixels | 5 MPX (2592x1944) – PAL |
| Sensitivity | colour: 0.1 lux / B/W: 0.01 lux |
| S/N ratio | better than 58 dB |
| Shutter speed | from 1/50 to 1/100,000 second |
| Video output | 4 in 1 (HDTVI, HDCVI, AHD, Analog) |
| Output level | 1 Vpp / 75 Ohm |
| Supply voltage | 12 Vdc (power supply not included) |
| Current draw | 200 mA |
| Operating temperature | -10°C to + 60°C / 10% to 95%RH |
