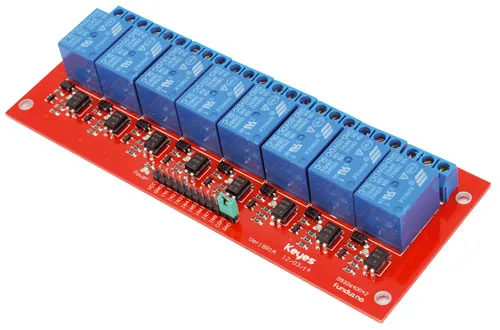

8-relay module 5 Vdc 10A (assembled)
Module with 8 relays for switching the connected load on and off, 250V/10A (max)
SKU 2846-RELAY8CHEAN 8219671061346Item type: AssembledActuators
Description
Module with 8 relays that allows you to activate/deactivate the load connected to them at 250V/10A (max). It has 8 opto-isolated inputs and status LEDs. It can be controlled directly by microcontrollers (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic).
VCC – 5 Vdc
GND – Ground
IN1—IN8 – relay activation with +5Vdc
COM-GND – Opto-isolation of inputs/power supply
Technical details
| Power supply | 5 Vdc |
|---|---|
| Number of relays | 8 (each relay requires a current of 15-20 mA) |
| Output contacts | N.O. - Common - N.C |
| Contact rating | 10 A 250 Vac - 10 A 30 Vdc |
| Activation voltage | 2.5 - 5 Vdc |
| Dimensions (mm) | 140x57x17 |
