868 MHz Long Range LoRa Transceiver Module

Compact 868 MHz RF transceiver module based on the RF96 chip

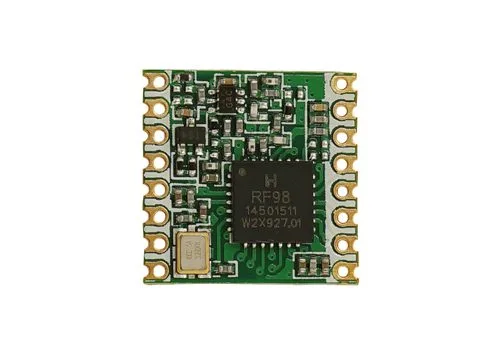

868 MHz Long Range LoRa Transceiver Module - Image 1

SKU 3085-RFM95-868EAN 8219671106764Item type: Assembled

Description

Compact 868 MHz RF transceiver module based on the RF96/868 chip. It features 6 digital I/O, high sensitivity (-148dBm) in LoRa™ modulation, and high output power (20dBm). It is particularly suitable for use in remote controls, smart meters, home automation, personal loggers, wireless sensor networks, wireless PC peripherals, etc.

Technical Specifications

  • Modulation: LoRa / FSK / GFSK / MSK / GMSK / OOK

Technical details

Frequency range 868 MHz
Interface SPI
Receive sensitivity -148dBm
Output power +20dBm
Data rate max. 300 kbps
Operating temperature -20°C to +70°C
Power supply 1.8 Vdc to 3.7 VDC
Standby current 1 µA
Dimensions (mm) 16x16x2
Weight 1 gram
