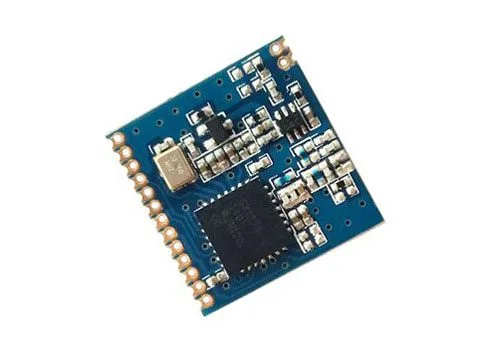

DRF1278F – 433 MHz Long Range LoRa transceiver module
Compact 433 MHz RF transceiver module based on the Semtech Corporation SX1278 chip
SKU 2846-DRF1278FEAN 8219671069847Item type: AssembledLoRa modules
Description
Compact 433 MHz RF transceiver module based on the SX1278 chip from Semtech Corporation. It features 6 digital I/Os, high sensitivity (-136dBm) in LoRa™ modulation, and high output power (20dBm). It is particularly suitable for use in remote controls, smart meters, home automation, personal loggers, wireless sensor networks, wireless PC peripherals, etc.
Technical details
| Frequency range | 433 MHz |
|---|---|
| Modulation | FSK/GFSK/MSK/LoRa |
| Interface | SPI |
| Sensitivity | -136dBm |
| Output power | +20dBm |
| Data rate | <300 kbps |
| Operating temperature | -40°C to +80°C |
| Power supply | 1.8 Vdc to 3.6 Vdc |
| Standby current | 1 µA |
| Dimensions (mm) | 17x17x2.1 |
