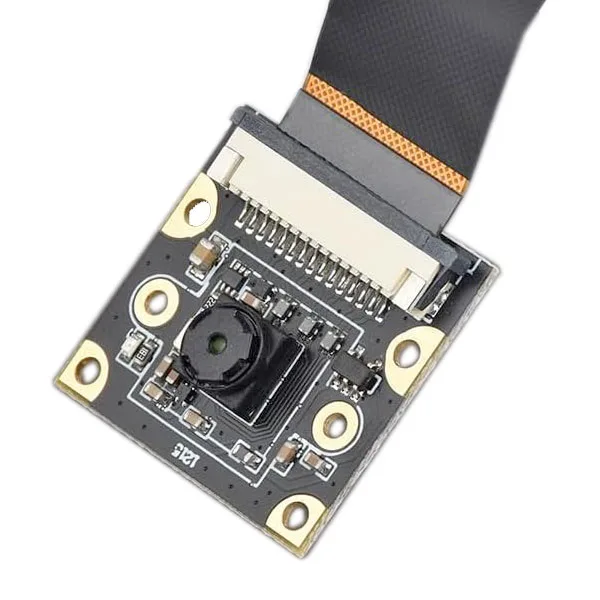

8MP Camera Module with Sony IMX219 for Raspberry Pi 5

With a wide-angle lens giving a 79.3° field of view, an f/2.0 aperture and distortion of <1%, it is the ideal choice for machine vision, video surveillance, robotics or high-resolution image capture projects.

Thanks to its compatibility with the MIPI CSI-2 interface of the Raspberry Pi 5, it offers straightforward integration and high-speed data transmission.

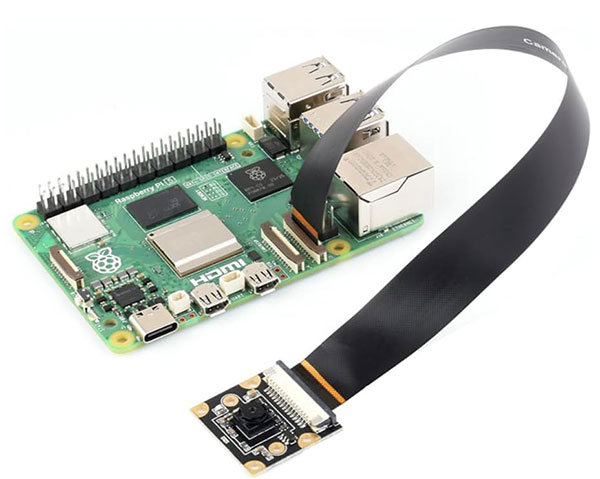

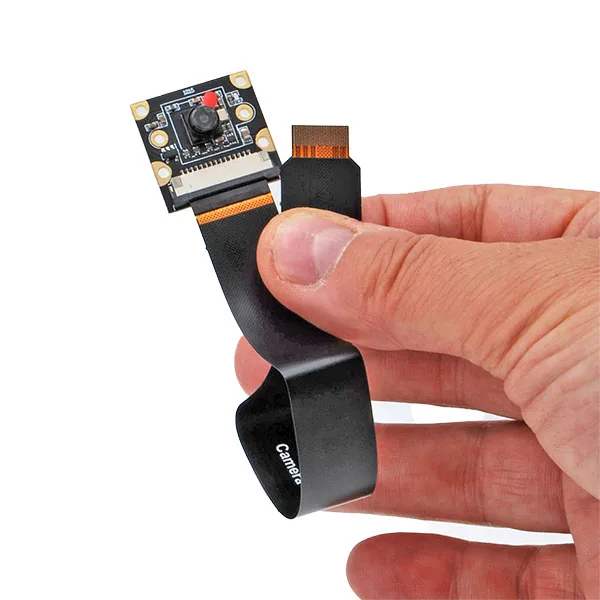

Supplied with a 200 mm CSI ribbon cable, it is easy to fit into your projects with the Raspberry Pi 5, even in tight spaces or custom set-ups.

Its compact size (25×24 mm), the mounting holes and the low power consumption make it perfect for portable systems and custom installations.

Reliable, light and accurate: it is the perfect module to get the most out of the video capability of your Raspberry Pi 5.

• Capture rates:
  • 8 MP @ 15 fps
  • 1080p @ 30 fps
  • 720p @ 60 fps
  • 640×480 @ 90 fps

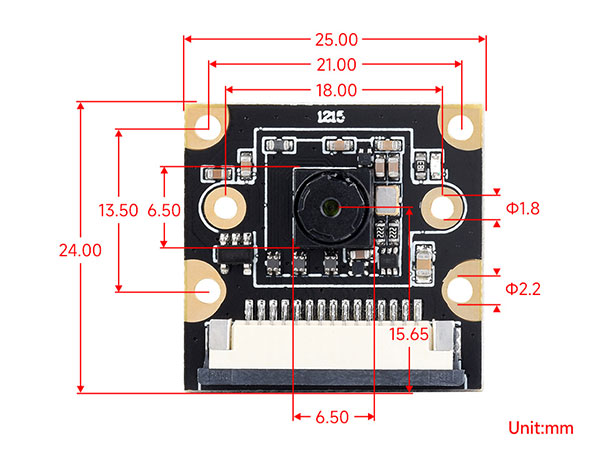

• Module dimensions: 25 × 24 mm
• Mounting holes: 4 (for M2.5 screws)
• Weight: about 3–5 g

• Wiki
