AC Overcurrent Protection Module

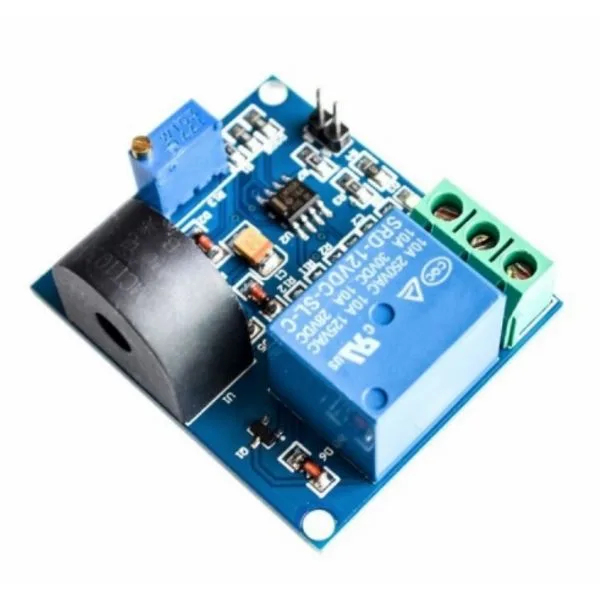

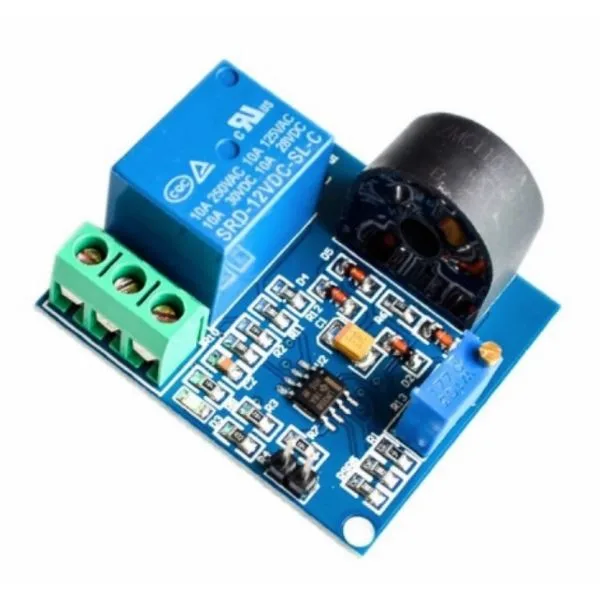

Module that reads the current and raises an alarm when a current threshold is exceeded
AC Overcurrent Protection Module - Image 1
AC Overcurrent Protection Module - Image 3
AC Overcurrent Protection Module - Image 4

SKU 8300-YM335EAN 8219671099585Item type: Assembled,

Description

Module that reads the current and raises an alarm when a current threshold is exceeded. The reading is taken on an AC mains cable passing through it and the relay is switched by a settable threshold, up to 5 A. The relay output has “clean” volt free contacts, which can be used to disconnect the load when the overload arrives or to switch on a visual or audible warning.

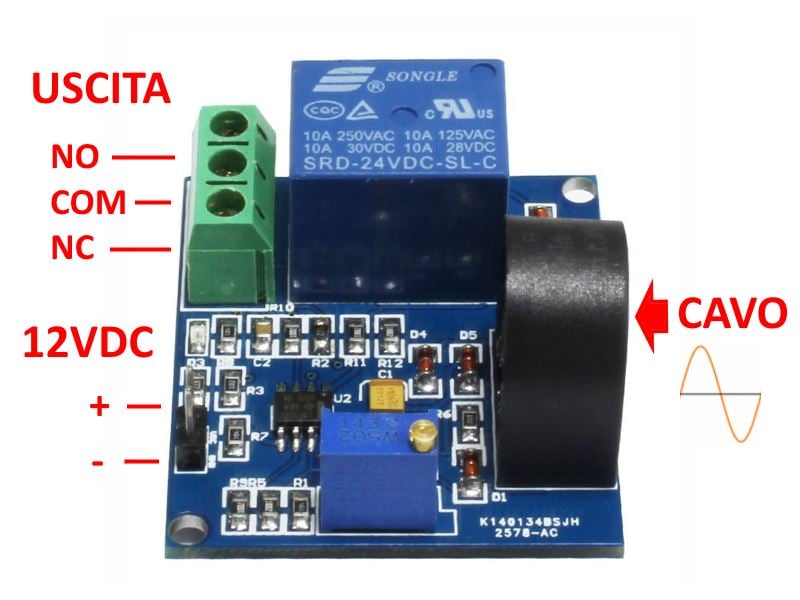

Connections

Specifications

Technical details

Supply voltage 12 Volt DC
Current threshold adjustment 0-5 A
Output Relay 10A/250Vac – 10A/30Vdc
Dimensions 45 x 40 x 25 mm
