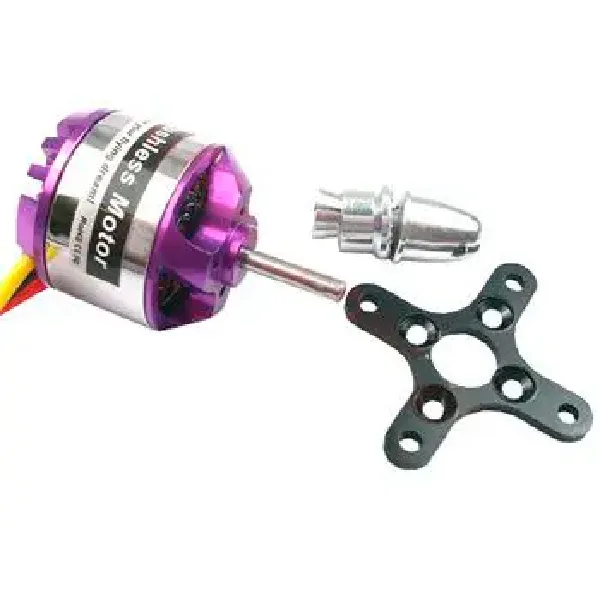

Brushless outrunner motor
850 KV, 187 watt outrunner motor for modelling and robotics, powered from 7.4 to 14 V with a 30 A ESC.
SKU 7300-2830-12EAN 8219671004855Item type: AssembledActuators
Description
Brushless outrunner motor. Power supply: 7.4 to 14 V, KV (rpm/V): 850, maximum power: 187 watts. Battery: 2-4 LiPo, ESC (electronic speed controllers): 30 A, motor shaft dimensions: Ø 3.17 mm × 45 mm, motor dimensions: Ø 28 mm × 30 mm, weight: 52 g. Ideal for model making and robotics.
Dimensions
Technical details
| Power supply | 7.4 to 14 V |
|---|---|
| KV (rpm/V) | 850 |
| maximum power | 187 watts |
| Battery | 2-4 LiPo |
| ESC (electronic speed controllers) | 30 A |
| motor shaft dimensions | Ø 3.17 mm × 45 mm |
| motor dimensions | Ø 28 mm × 30 mm |
| weight | 52 g |
