Capacitive Touch Screen Display 10.1″ with Audio Output and Speakers – 1920×1200 pixel

SKU 2850-10INCH_HDEAN 8219671116909Item type: Assembled, Shields & add-ons,

Description

10.1 inch capacitive LCD display with 1920×1200 pixel resolution, built-in audio with 2 speakers and HDMI support. Thanks to IPS technology, 10-point touch and optical bonding, it offers excellent visual clarity and advanced interaction. It includes a 3.5 mm audio jack and a 5 V USB output. Compatible with Raspberry Pi, Jetson Nano, PCs and consoles, it is ideal for all sorts of projects and applications.
10.1 inch capacitive LCD display with 1920×1200 pixel resolution for excellent visual clarity, and built-in audio with 2 speakers. HDMI connectivity lets you hook it up to a wide range of devices, for outstanding playback of multimedia content.

IPS technology gives wide viewing angles and true-to-life colours, for an immersive viewing experience. The 10-point touch allows advanced interaction, while optical bonding cuts unwanted reflections, improving readability in difficult lighting.

This display also has a 3.5 mm jack for audio output, giving you more freedom in choosing your audio gear. Compatible with Raspberry Pi boards, Jetson Nano, PCs and consoles, this versatile display suits a wide range of projects and applications, from embedded development to a high-quality display for your PC.

10.1″ HDMI capacitive touch display
Display Touch 10 pollici capacitivo
The Touch Port
The Touch Port carries the touch signals from the display to the computer. When you touch the screen, the monitor registers where the touch happened and sends that information to the computer through the Touch Port.
  • Data sent with a touch: the touch port sends the touch data to the computer, which then reads it to carry out specific actions (such as clicking, scrolling or zooming).
  • Compatibility: the Touch Port makes the monitor work with the computer’s operating system, such as Windows, macOS or Linux (Ubuntu, for instance), with no extra drivers to install.
  • Lower latency: using a dedicated Touch Port shortens the response time between the touch and what happens on screen, improving the user experience.
  • Plug and Play: on some monitors the Touch Port port allows quick, simple setup, simply by connecting the monitor to the computer with no complicated configuration.

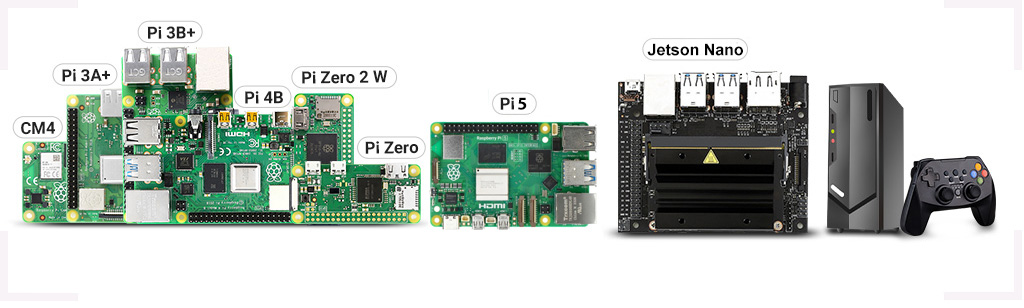

Supported devices and systems – Compatible with all Raspberry Pi boards
10" capacitive touch display with audio
  • Compatible with all Raspberry Pi boards
    Connects directly to: Raspberry Pi 5, Pi 4B / 3B + / 3A + / 3B / 2B / 1B + / 1A +
    Driver supplied: supports Raspbian / Ubuntu / Kali / Retropie
  • PC
    Compatible with Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, no drivers needed.
  • Game Console
    Compatible with Xbox 360, PS4, PS5, Switch…
  • Jetson Nano
    Supports Ubuntu, single-point touch, no drivers needed
Display with touch control
  • Up to 10 touch points, depending on the operating system.
    This means the touch panel supports up to 10 simultaneous contact points, though full functionality may vary with the operating system in use.
  • Tempered glass with hardness up to 6H.
    The glass panel is tempered to reach a hardness of up to 6H, which means it resists scratches better than ordinary glass.
  • Optically bonded screen, better viewing experience, dust resistant.
    Optical bonding technology is used to improve the viewing experience by cutting reflections. This screen is also designed to resist dust.Display Touch 10 pollici capacitivo
Gaming and fun
  • Compatible with Xbox360, PS5 and PS4, Switch (Audio and Video only)

Display Touch 10 pollici capacitivo

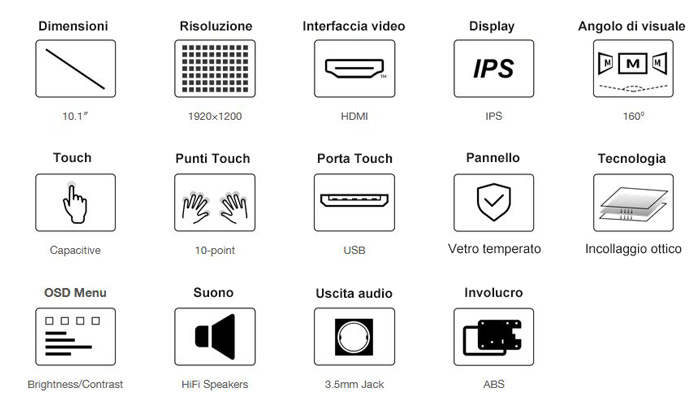

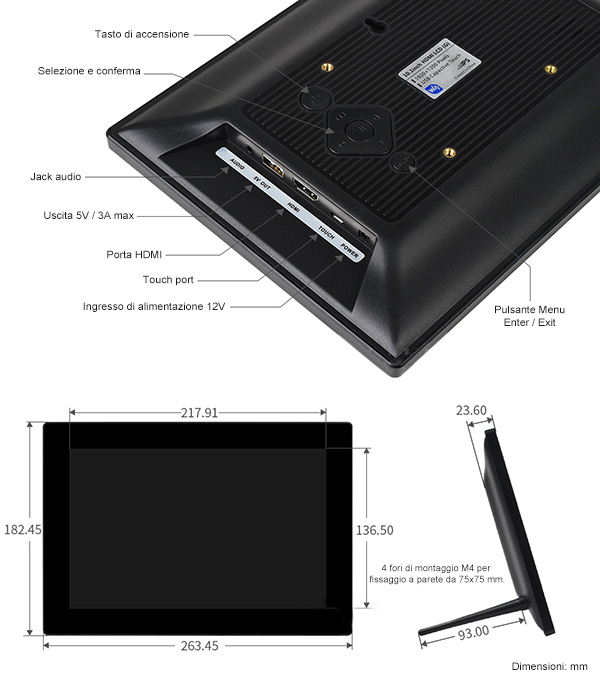

Overview and dimensions

10INCH_HD - features and dimensions
Click the image to enlarge

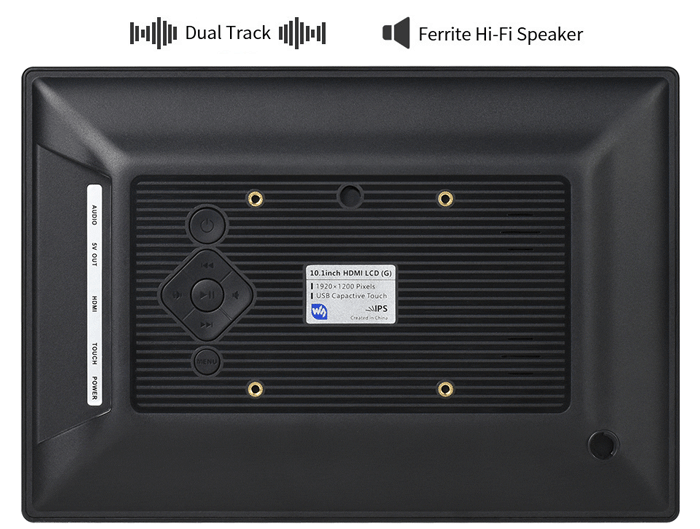

Audio features

10-inch capacitive touch display
This display has an audio output with a 3.5 mm jack and two high-performance speakers, for high-quality sound.

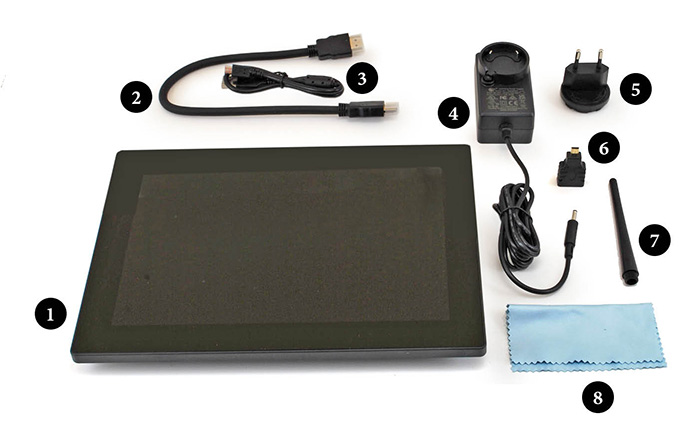

Package contents


10-inch capacitive touch display

  1. 10.1 inch HDMI LCD monitor x1
  2. HDMI cable x1
  3. USB-A to Micro-B cable x1
  4. 12V mains adapter x1
  5. European plug adapter
  6. HDMI to Micro HDMI adapter x1
  7. Rear stand x1
  8. Soft cloth for cleaning the display x1
Documentation and useful links
