Carrier board for DRV8825 and 3DDRIVER

This small board was designed specifically to simplify the use of stepper motor driver modules such as the A4988, DRV8825, 3DDRIVER or others with the same pinout
Carrier board for DRV8825 and 3DDRIVER - Image 1
Carrier board for DRV8825 and 3DDRIVER - Image 3

SKU 2846-DRIVERBOARDEAN 8219671083591,

Description

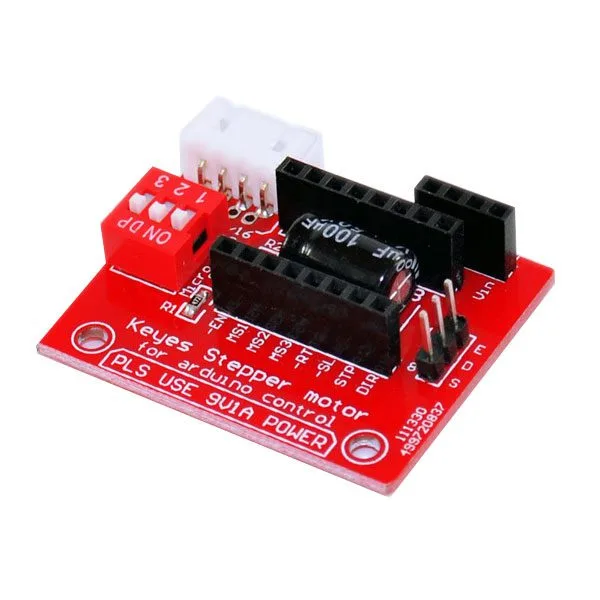

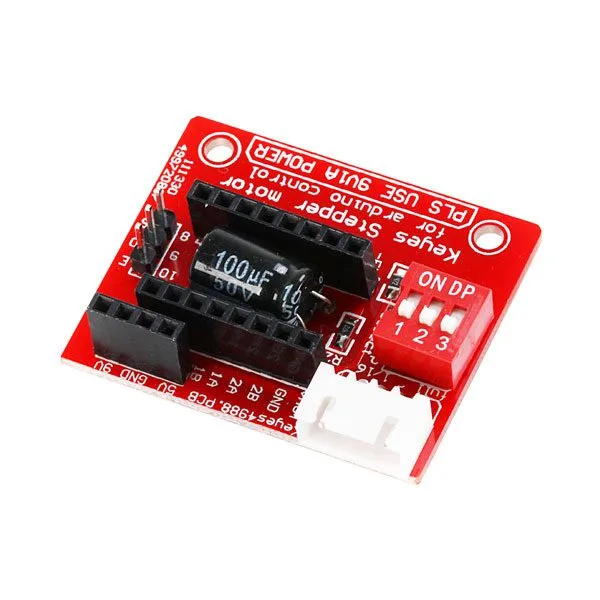

This small board was designed specifically to simplify the use of stepper motor driver modules such as the A4988, DRV8825, 3DDRIVER or others with the same pinout. It has a socket for the stepper motor driver, a DIP switch for setting the step resolution (full step, 1/2, 1/4, 1/8 and 1/16), and a connector carrying the control pins (E= Enable, S= Step, D= Dir) and the power supply. Size (mm): 34.5x42x11, weight: 9 grams.
