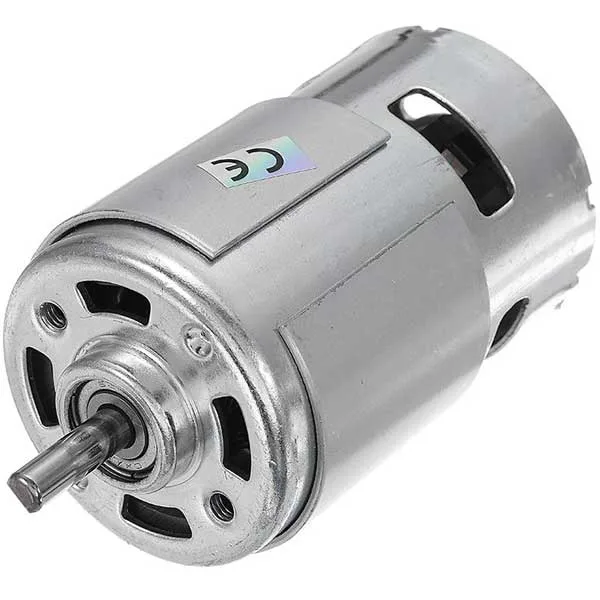

DC MOTOR 12V/24V (12000 RPM max.)
This DC motor works over a wide voltage range between 12V and 24V, fitting different supply requirements perfectly. It builds up a progressive rotation speed that peaks at 12,000 RPM at 24V (about 6,000 RPM at 12V).
SKU 1606-MOT24VDC12KRPMEAN 8219671102483Item type: AssembledActuators
Description
|
DC motor designed to work over a voltage range from 12V to 24V, it is the ideal solution for applications calling for high speeds and constant torque. Thanks to the internal cooling fan, the motor keeps ideal working temperatures even during long runs, giving the parts a longer life. The motor shaft is cylindrical, solid section (Ø5mm) and gives maximum compatibility with standard pulleys, couplings and pinions, making it perfect for robotics projects, hobby CNC machines or power tool repairs. |
| Technical Specifications |
| Operating voltage: 12~24 Vdc No-load speed: 6,000 rpm @ 12V No-load speed: 12,000 rpm @ 24V Rated current: 1.2 A @ 12V Rated current: 1.8 A @ 24V Stall torque: 4,200 g/cm @ 12V Cooling fan: Internal Overall dimensions: 98×44 mm Shaft: Cylindrical, solid section Ø5 mm Mounting screw size: M4 Weight: 350 g |
| Documentation and useful links |
Technical details
| Operating voltage | 12~24 Vdc |
|---|---|
| No-load speed | 6,000 rpm @ 12V |
| Rated current | 1.2 A @ 12V |
| Stall torque | 4,200 g/cm @ 12V |
| Cooling fan | Internal |
| Overall dimensions | 98x44 mm |
| Shaft | Cylindrical, solid section Ø5 mm |
| Mounting screw size | M4 |
| Weight | 350 g |
