DESKTOP TRANSMITTER – 4 CHANNELS

Four-channel transmitter complete with wooden desktop stand

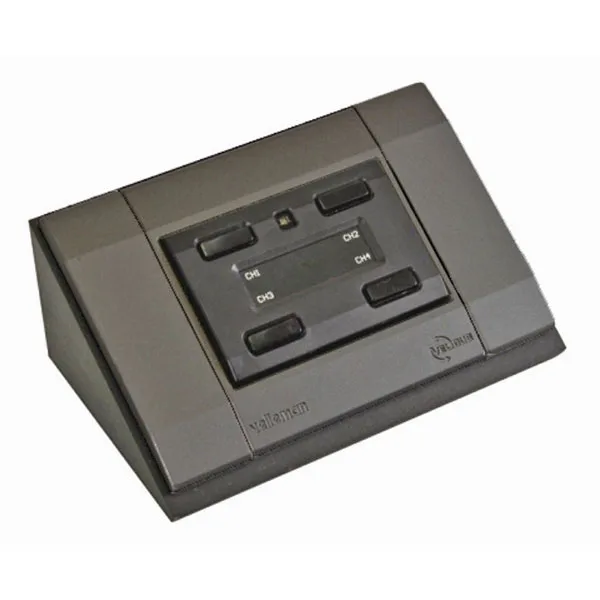

DESKTOP TRANSMITTER - 4 CHANNELS - Image 1

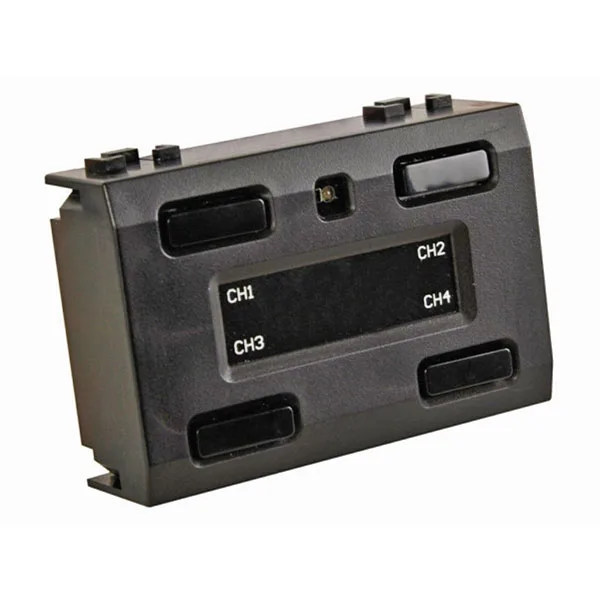

DESKTOP TRANSMITTER - 4 CHANNELS - Image 3

SKU 8220-VM160DTEAN 8219671058780Item type: Assembled

Description

Four-channel transmitter complete with wooden table stand. Operating on 433.92 MHz with 32-bit encoding and over 1 billion possible combinations. Suitable for use with the 4-channel receiver code 8220-VM160. Can be wall-mounted and each button’s label can be customized.

Images

Technical Specifications

  • Transmitter
  • R&TTE compliant (ETS 300-220)

Technical details

Power 12 V battery type GP23GAC
Channels 4
Operating frequency 433.92 MHz
Encoding 32-bit with more than 1,000,000,000 combinations
Range (without obstacles) approximately 30 meters
Dimensions 122 x 76 x 53 mm
