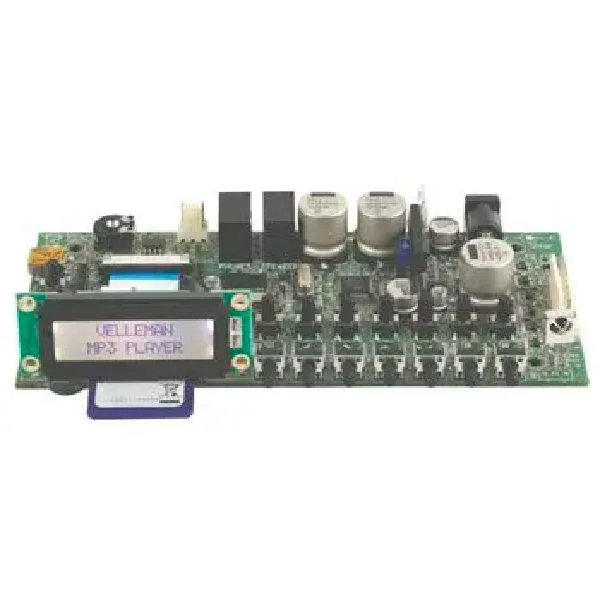

MP3 PLAYER – ASSEMBLED

Description

Equipped with a high-quality VLSI decoder, it can play MP3 tracks stored on SD or SDHC memory cards (max. 32 GB). It supports up to 1024 folders, each containing up to 16,384 songs. It features an equalizer, 7 user-definable preset buttons with external connection, 8 different preset sound modes, 6 playback modes, an infrared receiver module for remote control (via optional remote control), headphone and speaker output. It supports ID3 TAG: the title, artist name, album name, and year are displayed on the 2-line, 16-character LCD (optional). You can mount the RX433N 433 MHz receiver module to control the board with the following optional radio controls: VM160DT (4-channel desktop transmitter), VM160T (4-channel handheld transmitter), VM118R or K8058 (8-channel transmitter) and K8049 (15-channel transmitter in kit form).

Technical Specifications

• Playback from SD and SDHC cards (up to 32 GB)
• High-quality VLSI decoder
• 7 user-definable preset buttons with external connection
• On-board control buttons
• Play-pause, next track, previous track, search functions
• Volume control
• 8 different preset sound modes
• 6 playback modes
• Infrared receiver
• Headphone and speaker output (3.5 mm jack)
• Optional products:
  – 15-channel radio control: K8049 (kit version)
  – 8-channel radio control: VM118R (assembled) – K8058 (kit version)
  – 4-channel radio control: VM160DT (desktop transmitter) – VM160T (handheld transmitter)

Specifications

• Suitable for SD and SDHC cards (up to 32 GB)
• Supports ID3 TAG information: title, artist name, album name, and year are displayed on the 2-line, 16-character LCD (optional)
• Up to 1024 folders, each containing up to 16,384 songs
• Equalizer settings: Flat, Loudness, Heavy, Clear, soft, Disco, Live and Hall
• MP3 decoding (MPEG 1.0 & 2.0 audio layer III (CBR, VBR, ABR), up to 320kbit/s. Fraunhofer IIS and Thomson licensed
• Power supply: 12 Vdc/1 A
