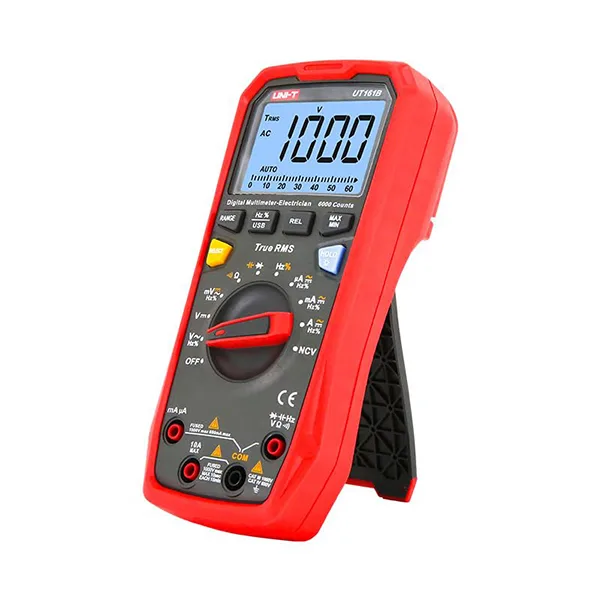

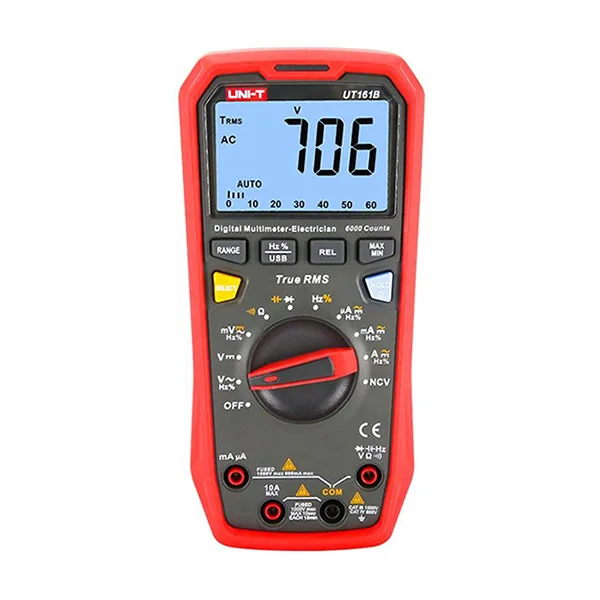

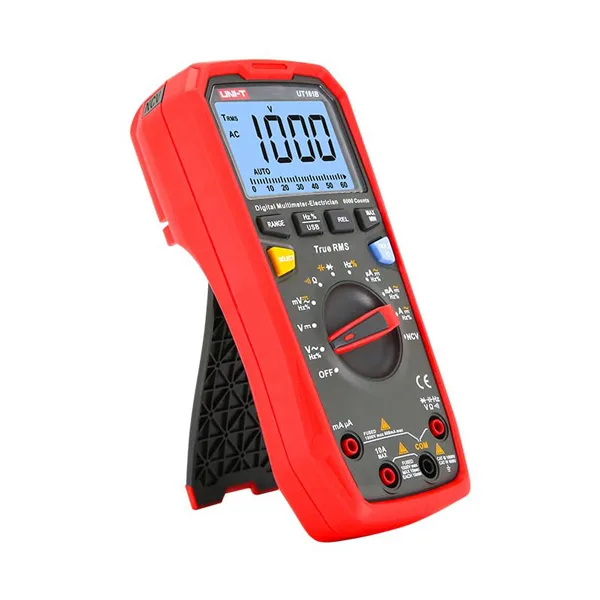

Digital Multimeter with USB Interface – 1000 V / 10 A – UT161B

Handheld True RMS digital multimeter with a 6000-count capability, notable for its high reliability and safety. The instrument has a large backlit LCD display that includes a high-resolution 31-segment analogue bar. Thanks to full-scale overload protection and to its design, it makes a practical measuring instrument for the hobbyist and the professional alike.

The multimeter can measure AC/DC voltages and currents, resistance, diodes, continuity, capacitance and frequency. It also offers a data hold function, relative measurement, low-battery indication, backlight, auto power-off and NCV.

• True RMS: the multimeter measures the RMS value of voltages or currents accurately, whatever the waveform.
• Data hold/backlight: the multimeter can store measurement data and has a backlight so the readings can be seen in poor light too.
• Max/Min/Relative mode: the multimeter can measure and show the maximum and minimum values of the voltages or currents it reads, and has a relative mode to work out the differences between measurements.

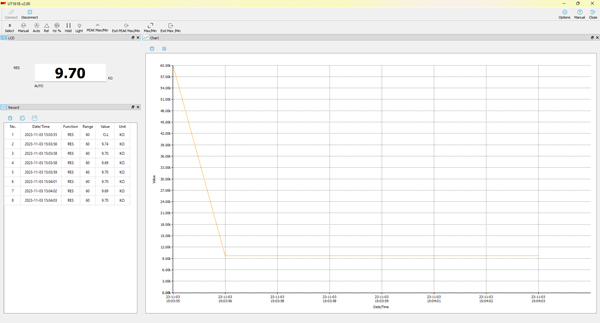

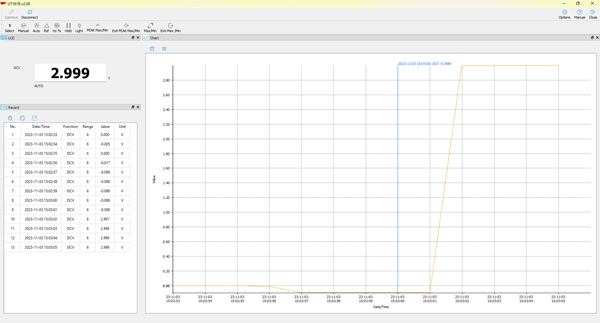

• USB interface: the multimeter can talk to a computer or another device over a USB connection, so measurement data can be transferred or dedicated software used.
• Input protection: the multimeter is designed with a protection system that prevents damage from overvoltage and overcurrent while measurements are being taken.
• Diode/continuity test: the multimeter can be used to test diodes and to check continuity in electrical circuits, giving a specific signal when the test passes or fails.
• NCV (audible/visual alarm): the multimeter has a non-contact voltage (NCV) detection function that warns the user visually or with a sound when electrical voltage is detected, without physically touching the cables or the electrical components.

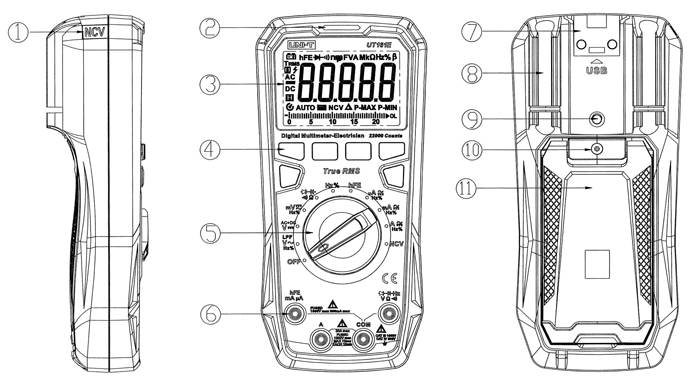

1. Non-contact voltage detection (NCV)
2. Indicator light
3. LCD display
4. Function keys
5. Range selector
6. Input jacks
7. USB connection
8. Probe holder
9. Mount for external stand
10. Battery compartment fixing screw
11. Tilting stand

• Maximum voltage between the input terminal and the COM terminal: 1000V
• Safety standards: IEC 61010-1: CAT III 1000V / CAT IV 600V
• Certification: CE, ETL
• Pollution degree: 2

• AC voltage (Vac): 1000V ±(1%＋3)
• DC voltage (Vdc): 1000V ±(0.5%＋3)
• AC current: 10A ±(1.2%＋5)
• DC current: 10A ±(1%＋2)
• Resistance (Ω): 60MΩ ±(1%＋2)
• Capacitance (F): 60mF ±(3%＋5)
• Frequency (Hz): 10MHz ±(0.1%＋4)
• Duty cycle (%): 0.1%~99.9% ±(2%＋5)
• Display capacity: 6000
• Bandwidth (Hz): 40Hz~500Hz
• Power supply: 4 x 1.5V batteries (AA type)
• Net product weight: 350g
• Product dimensions: 190mm x 90mm x 50mm
• Accessories included: Batteries, test leads, USB cable, manual in English

• Digital multimeter x1
• Test leads x1
• 1.5 V batteries x4
• One USB interface cable
• User manual ( English )
