DVB-T2 Decoder with Programmable Remote Control – H265 – Italian

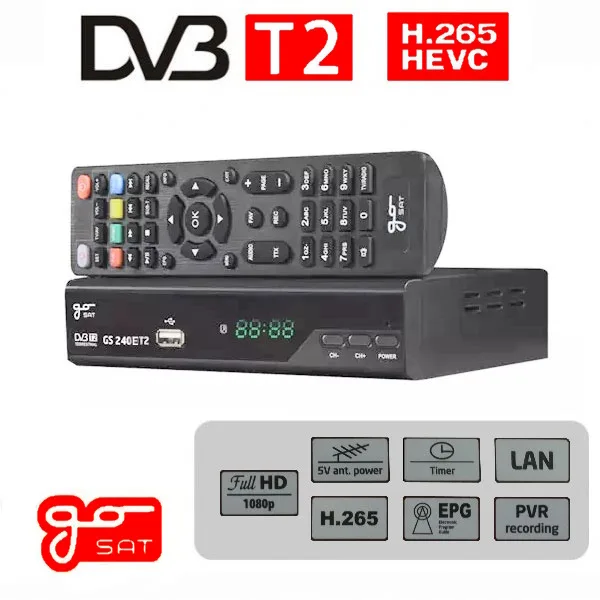

The GoSAT GS240ET2 is a DVB-T2 H.265/HEVC digital terrestrial receiver with Full HD quality, compatible with both old and new broadcast standards.

SKU 8240-GS240ET2EAN 8595563727171Item type: Assembled

Description

is a new-generation DVB-T2 digital terrestrial decoder, designed to deliver an excellent viewing experience in Full HD 1080p quality. It works both with modern H.265/HEVC signals and with older DVB-T broadcasts in H.264, still found in some communal aerial systems in blocks of flats or in areas where the move to the new standard is not complete.

It comes with a programmable remote control, an on/off timer and a USB port for playing media content (video, music, pictures) straight from a USB stick. The simplified OSD menu and the adjustable brightness of the LED display make it easy to use even in dimly lit rooms.

The decoder has an HDMI output up to 1080p, SCART for older TVs, S/PDIF digital audio, automatic and manual channel search, an EPG guide, subtitle support, teletext and parental control. Software optimised for the Italian market gives maximum compatibility and stability.

Features
  • Fully compliant with DVB-T2 H.265/HEVC and H.264 AVC
  • HDMI video output (1080P / 50Hz)
  • Now / next programme shown on the EPG display
  • Supports TV bandwidths of 6, 7 and 8 MHz, TV channels 5 to 12 and 21 to 70
  • Automatic PAL and NTSC
  • Teletext, OSD subtitles, LCN
  • SCART socket with CVBS, YUV, RGB output
  • SPDIF coaxial audio output
  • Menu languages: Italian, English, French, German, Spanish, etc
  • Automatic and manual channel scan
  • 1000 channels
  • Parental control
  • 4-digit LED display showing the time in standby, with brightness adjustment
  • USB port for playing media files
    โ€“ from a stick with a transfer rate of at least 80MB/sec
    โ€“ from a hard disk of at least 500GB with a transfer rate of at least 100MB/sec
  • Supports USB sticks up to 32 Gb and external hard disks up to 2Tb
  • Timeshift function to pause a programme and pick up viewing from where you left off
  • Firmware update over USB

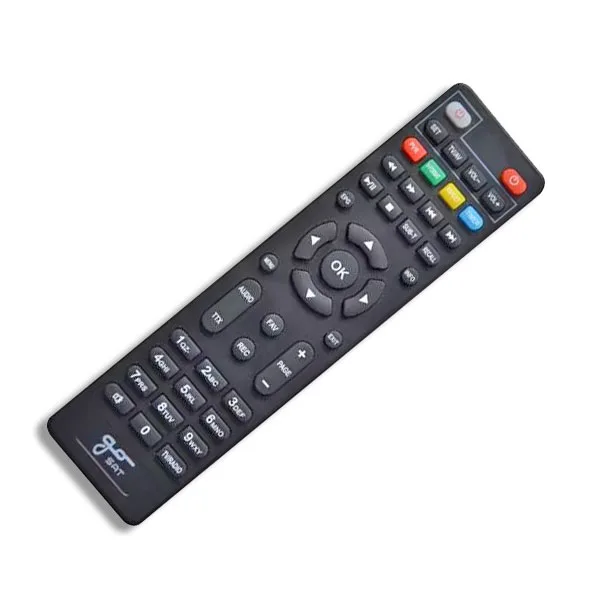

  • Programmable remote control
Technical specifications
  • 1x IEC female input, 1x IEC male output
  • Standby consumption: < 1W
  • Dimensions: 168 x 108 x 36 mm
  • Protection rating: IP20 (indoor use only)
What is in the box
  • GS240ET2 receiver
  • Remote control
  • 2 AAA batteries
  • User manual
Documentation

Technical details

Hard disk formatting NTFS, FAT32, FAT16
Remote control batteries (included) 2xAAA 1.5V
Language geolocation Italian preset
Tuner input frequency 115 - 870 MHz
RF input signal level -78 to -20 dBm
Modulation OFDM, 16QAM, 32QAM, 64QAM
System memory 64 MB
Video decoder MPEG-1/2/4, H.264 AVC, H.265 HEVC
Audio decoder HE-AAC, MP3, AC-3 (Dolby Digital), MPEG-1 audio layer
Video output formats 480p, 480i, 576i, 576p, 720p, 1080i, 1080p

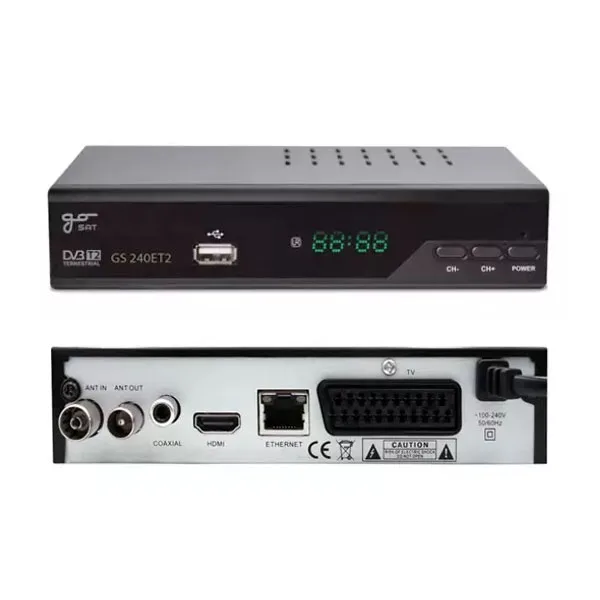

Connectors 1x HDMI 1.4b, 1x USB 2.0, 1x SCART, 1x S/PDIF coaxial
Supported file systems NTFS, FAT32, FAT16
Supply voltage 100-240V~AC 50/60 Hz
Power consumption max 10W
