Electromagnet Breakout Board
Electromagnet with a holding force of up to 25 newtons, about 2.5 kg, driven by a single logic pin and powered from 3.3 to 5 Vdc.
SKU 2860-SEN-MAG25NEAN 4250236820040Item type: AssembledElectronic components
Description

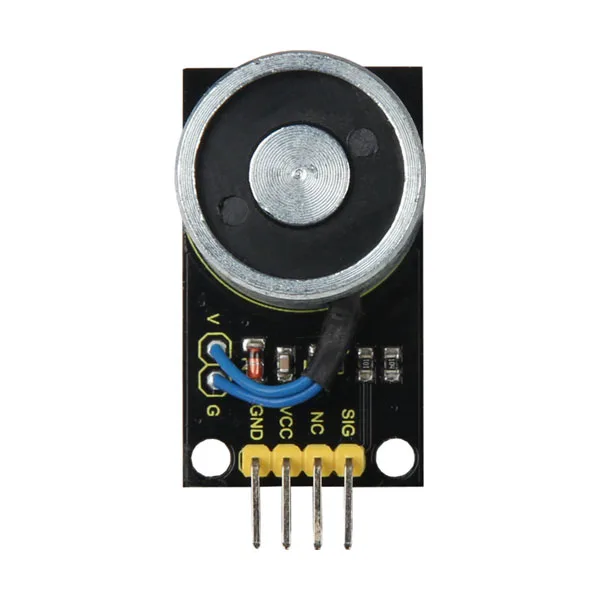

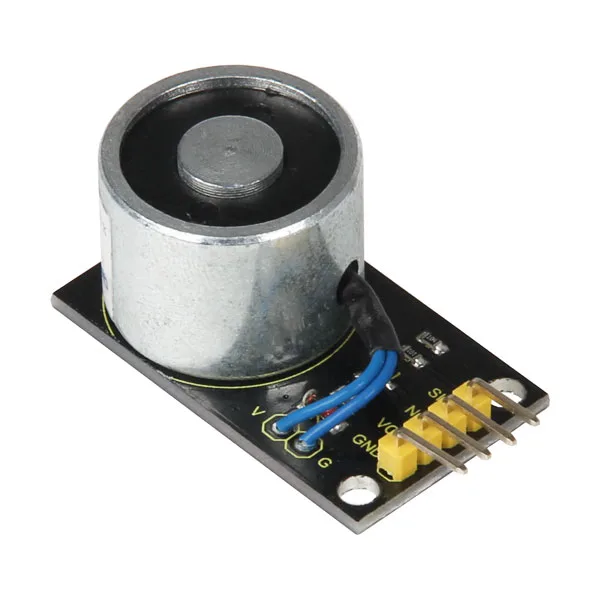

Breakout board with a holding electromagnet. It activates when the SIG pin is brought high, and can generate a holding force of about 25 Newtons (about 2.5 kg). To deactivate the electromagnet, simply bring the SIG pin low.
Power supply: from 3.3 to 5 VDC. It can also be used with Arduino, Fishino, Raspberry Pi (with AD converter) or other microcontrollers. Application areas: robotics, automation, locking/unlocking mechanisms, etc.
Technical details
| Application areas | robotics, automation, locking/unlocking mechanisms, etc |
|---|---|
| Power supply | from 3.3 (< 350 mA) to 5 VDC (< 500 mA) |
| GND | Ground |
| VCC | Voltage supply |
| SIG | Signal |
| Electromagnet dimensions (mm) | 20 (diameter) x 15 (height) |
| Holding force | about 25 Newtons (about 2.5 kg) |
| Dimensions (mm) | 40x20x19 |
| Weight | 26 grams |
