Flame Sensor Board

Small board able to detect the presence of a flame or a light source with a wavelength between 760 nm and 1100 nm

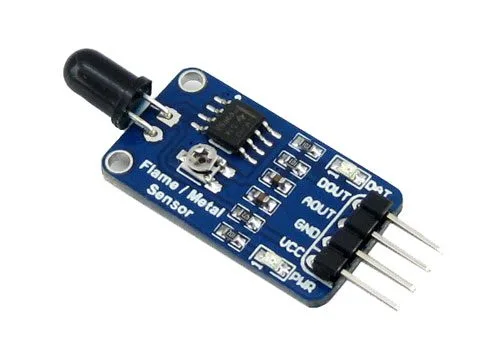

Flame Sensor Board - Image 1

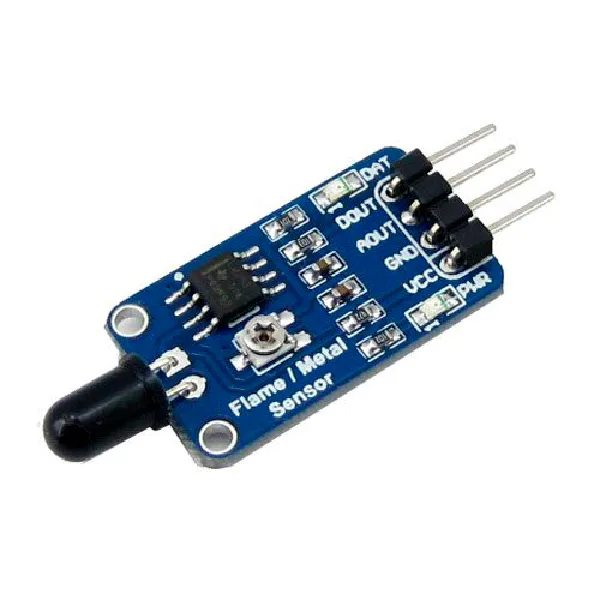

Flame Sensor Board - Image 3
Flame Sensor Board - Image 4

SKU 2850-FLAMESENSOREAN 8219671072748Item type: Assembled,

Description

Small board capable of detecting the presence of a flame or a light source with a wavelength between 760 nm and 1100 nm. It features a voltage comparator (LM393), a trimmer for sensitivity adjustment, a detection angle of 60°, and both analog and digital outputs.

Technical details

Spectrum range from 760 nm to 1100 nm
Detection angle from 0° to 60°
Power supply from 3.3 Vdc to 5.3 Vdc
Operating temperature from -25°C to +85°C
Dimensions (mm) 27.3 x 15.4
