FLASH MICROCONTROLLER 128K 64PIN TQFP

Microchip SMD microcontroller with 128k Flash memory, 54 I/O (PORT A, B, C, D, E, F, G), 5 timers, 2 CCP modules, 64-pin TQFP package.

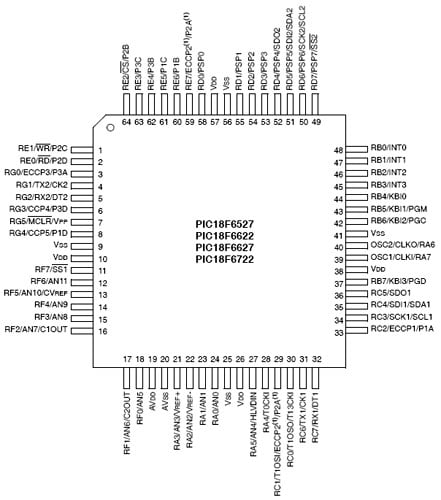

FLASH MICROCONTROLLER 128K 64PIN TQFP - Image 1

SKU 1340-PIC18F6722-I/PTEAN 8219671009331Item type: Assembled

Description


 TECHNICAL SPECIFICATIONS
  • ECCP module (Enhanced Capture/Compare/PWM): 3


Technical details

Package TQFP 64 pin
Supply voltage 2 to 5.5 Vdc
Port Input/Output 54 (PORT A, B, C, D, E, F, G)
Flash Program Memory (Bytes) 128k
Program Memory (Instructions) 65536
Data Memory SRAM (Bytes) 3936
Data Memory EEPROM (Bytes) 1024
Interrupt sources 28
Operating Frequency DC – 40 MHz
Number of instructions 75
Timers 5
CCP module (Capture/Compare/PWM) 2
Serial Communications MSSP, Enhanced USART
Parallel Communications (PSP) yes
