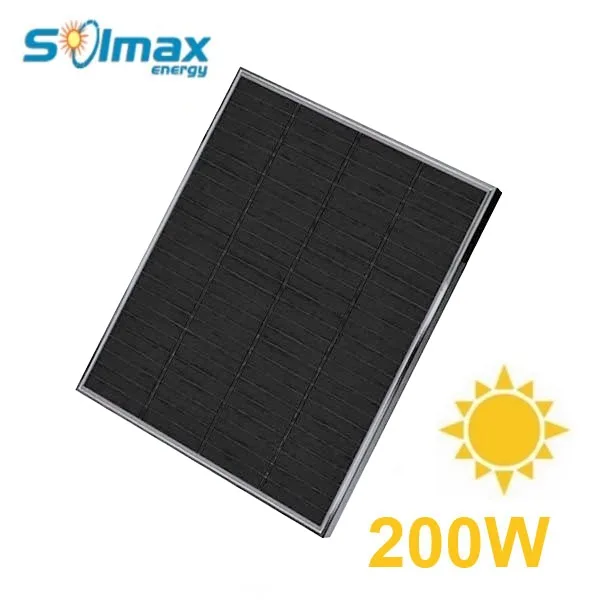

FULL BLACK Monocrystalline Solar Panel 12V-200W 110x89cm
FULL BLACK monocrystalline solar panel rated 200 watt, with a black aluminium frame and tempered glass protection
SKU 8242-SOL200MEAN 8219671118453Item type: AssembledSolar panels
Description
200-watt FULL BLACK monocrystalline solar panel with an aluminum frame (black) and protected by tempered glass. Peak power: 200 W, voltage at maximum power point: 18.7 V, maximum current: 10.7 A, dimensions (mm): 1100x890x30, weight: 11.6 kg. Easy to install, it can be used for small solar systems, boats, yachts, campers, camping, lighting, etc.
The solar panel already comes with specific connectors for solar systems, so it can be connected easily without any soldering.
Technical specifications
- Voltage at maximum power point (Vmp): 18.7 V
- Tempered glass
- Mounted with a sturdy aluminum frame
- Operating temperature: -40°C to +80°C
- Weight: 11,600 grams
Technical details
| Peak power | 200 W |
|---|---|
| voltage at maximum power point | 18.7 V |
| maximum current | 10.7 A |
| dimensions (mm) | 1100x890x30 |
| weight | 11.6 kg |
| Nominal voltage | 12 V |
| Type | monocrystalline silicon |
| Efficiency | 21.4% |
| Peak current (Imp) | 10.7 A |
| Open-circuit voltage (Voc) | 22.1 V |
| Short-circuit current (ISC) | 11.34 A |
| Connection box protection rating | IP67 |
| Cables | 4 mm2 cross-section, 90 cm length |
| Connector type | MC4 compatible |
