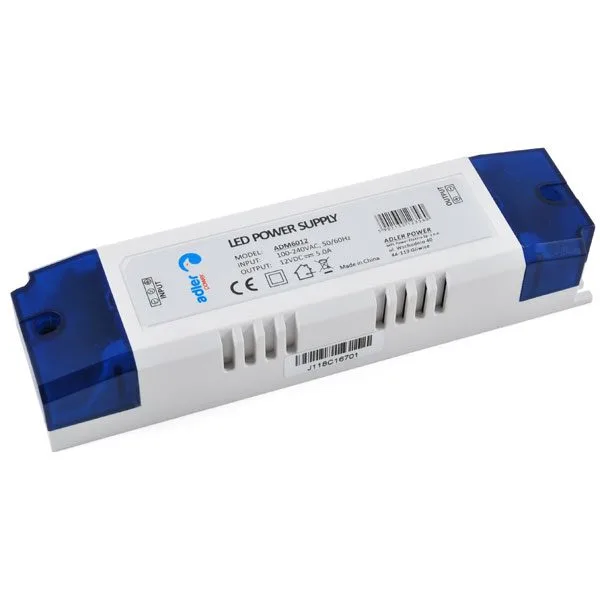

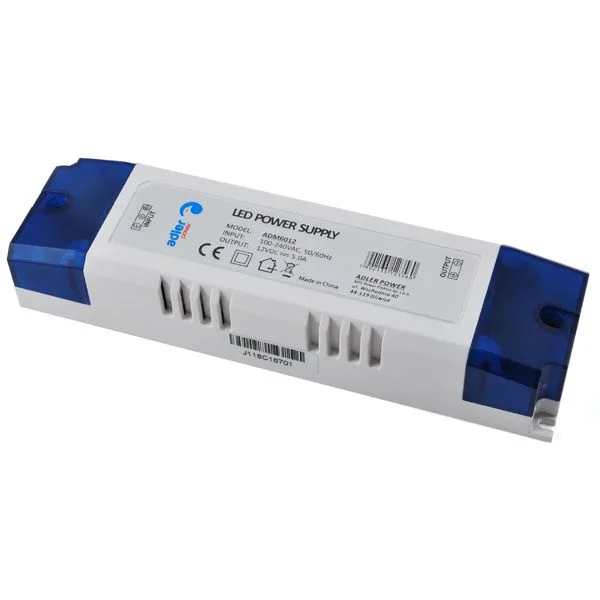

LED Power Supply 12V – 5A
LED power supply with 12V output voltage and 5A output current
SKU 8245-ADM6012EAN 5902135123546Output voltage: 12 VdcItem type: AssembledLED & strip drivers
Description
LED power supply with 12V output voltage and 5A current. Features protection against short circuits, overload, and overcurrent. Input: 110-264 VAC 50/60 Hz. No heat sink required. Indoor use only. Dimensions (mm): 166x45x29, weight 175 grams.
Technical specifications
- High reliability
- Safety standard: EN60950-1 compliant
- EMC emission: EN55015 compliant
Terminal pinout
- Terminal 1: ground
- Terminal 2: AC input / neutral
- Terminal 3: AC input / line
- Terminal 4: output -V
- Terminal 5: output +V
Technical details
| Input | 110-264 VAC 50/60 Hz |
|---|---|
| Dimensions (mm) | 166x45x29, weight 175 grams |
| Input voltage | 110 ~ 264Vac |
| Frequency range | 50/60Hz |
| Efficiency | 83% |
| Output voltage | 12Vdc |
| Output current | 5A |
| Power | 60W |
| Ripple and noise | 600mVpp |
| Hold-up time | 30ms/230Vac at full load |
| Operating temperature | -10°C ~ 50°C |
| Ambient humidity | 20~90% RH |
| Weight | 175 g |
| Storage temperature | -20°C~70°C; 10~95% RH |
