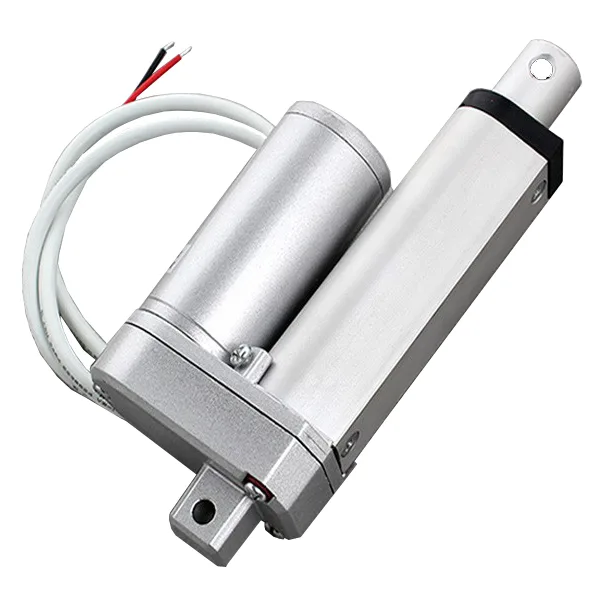

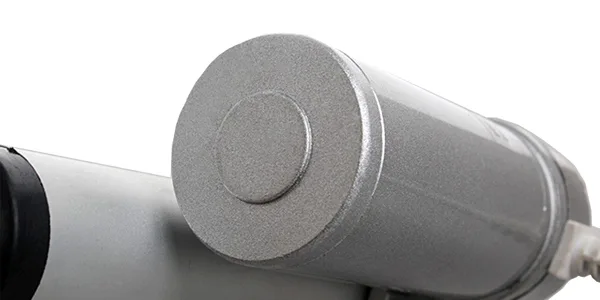

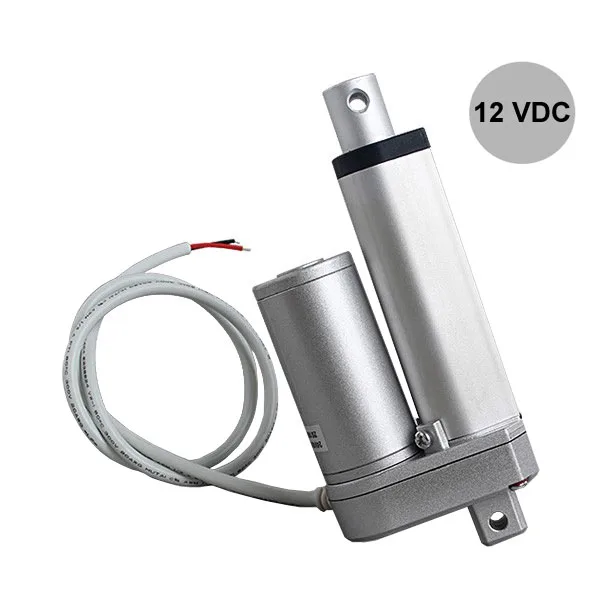

Linear Actuator 12 V 100 kg – 50 mm Stroke

Description

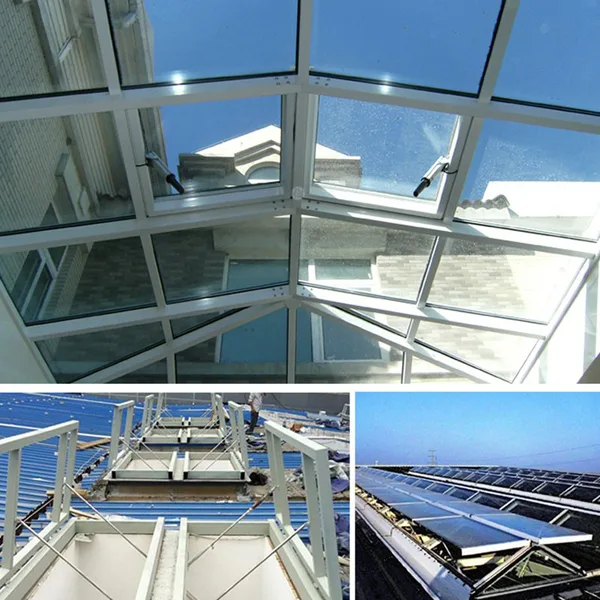

Comprising a 12 Vdc geared motor, it uses a worm screw to move a shaft back and forth along its length with a maximum travel of 50 mm. The actuator has a dynamic load rating of 100 kg and a maximum speed of 12 mm/s. The screw thread ensures the shaft position is maintained even without power. Two limit switches stop the motor at full extension and retraction, while diodes allow reversing direction after reaching the limit. The actuator is metal and sealed to protect against dust and water (IP54 rated). Max current draw 1.5 A (no-load: 400 mA), dimensions (mm): 155x75x41, power cable length: approx. 70 cm, weight: 720 g. Ideal for automation and robotics.
