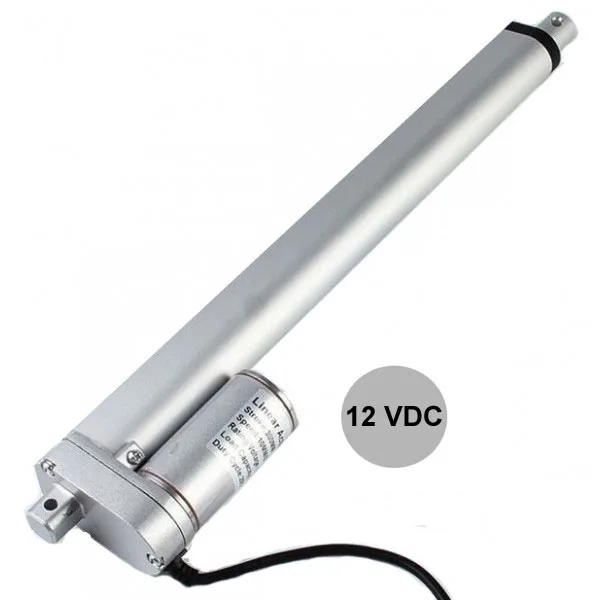

Linear Actuator 12 VDC 100 kg – 450 mm Stroke

Description

Comprising a 12 VDC geared motor, it uses a worm screw to move a shaft back and forth along its length with a maximum travel of 450 mm. The actuator has a dynamic load rating of 100 kg and a maximum speed of 12 mm/s.

The screw torque ensures the shaft position is maintained even without power. Two limit switches stop the motor at full extension and retraction, while diodes allow direction reversal after reaching the limit. The actuator is metal and sealed to protect against dust and water (IP54 rated). Max current draw 2 A (no-load: 400 mA), dimensions (mm): 630x90x45, power cable length: approx. 90 cm, weight: 1400 g.

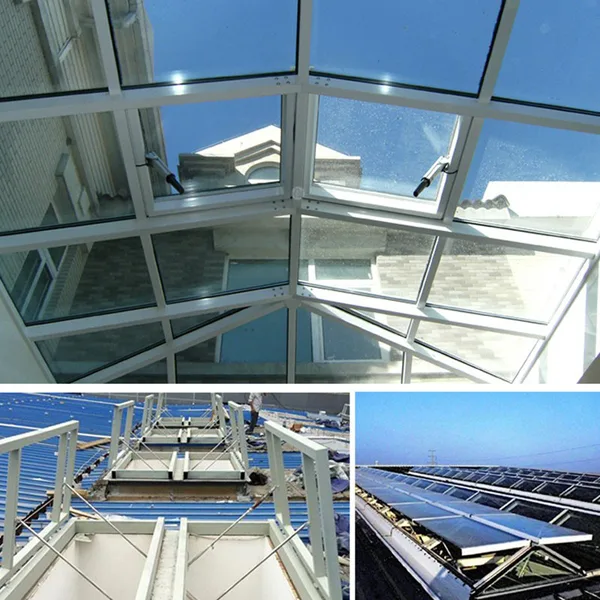

Ideal for automation and robotics.
