Liquid Level Controller
SKU 8220-K2639EAN 5410329026394Item type: KitHome products
Description
Have you ever had to deal with unexpected water leaks, or with the water level collapsing in your aquarium? Perhaps you have had tanks that empty or overflow, or the nightmare of a flooded cellar. We know how much trouble and unplanned expense these situations cause.
Worry no more. We have the solution you were looking for. This level controller is a smart device designed to head off these problems. With this dependable tool you get full control of water level management in all sorts of applications.
Its functions include:
- Custom Level Control: Our detector gives precise control of the water level against the reference value. With LEDs showing the LOW, MEDIUM and HIGH levels, you always know where you stand.
- Automatic Level Regulation: No more keeping the water at the level you want by hand. The built-in relay drives pumps and/or valves to keep the fluid level steadily between the LOW and HIGH values.
- Custom Level Alarm: For extra safety, our detector comes with an alarm system. You can choose whether to be warned when the level is too high or too low. On detection, the relay switches on a bell or another alarm device so you can react in time.
| SPECIFICATIONS |

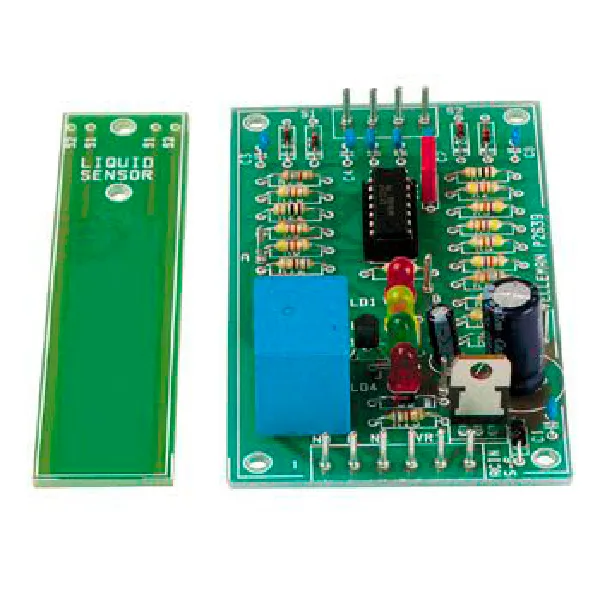

| – power supply: 12 to 14 VAC or 16 to 18 VDC / 100 mA – output relay: 240 V / 3 A max – control board PCB size: 104 x 60mm – sensor size: 104 x 25mm |
Technical details
| power supply | 12 to 14 VAC or 16 to 18 VDC / 100 mA |
|---|---|
| output relay | 240 V / 3 A max |
| control board PCB size | 104 x 60mm |
| sensor size | 104 x 25mm |
