Liquid Level Sensor – 200 mm

Description

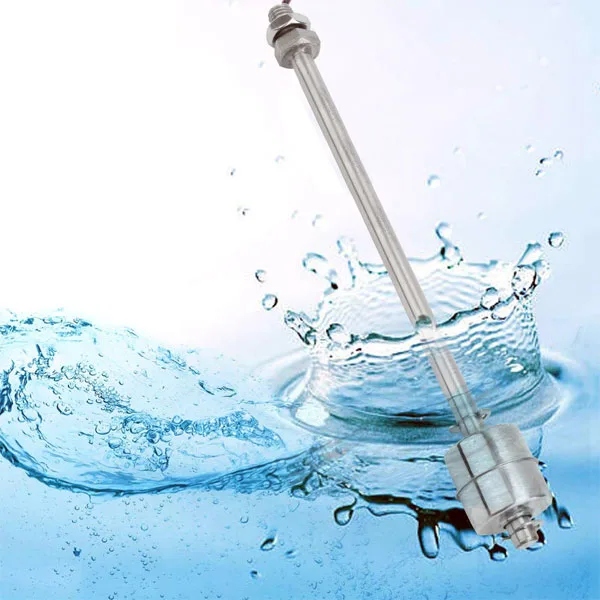

Made of stainless steel and fitted with a float, it is used to detect the level of a liquid inside a tank and can activate a pump, a warning light, an alarm, or other device.

Operation is very simple: assuming vertical mounting with the wires facing upward (e.g., on a tank lid), when the liquid level does not reach the float, the contact is closed. As soon as the liquid lifts the float, the contact opens.

N.B. Operation can be reversed by removing the lower E-CLIP and turning the float (refer to the notch on the body).

Technical specifications

• Switching system: Reed in the body and magnet in the float
