MAX6675 MODULE + TYPE K THERMOCOUPLE FROM 0°C TO +600°C
Set made up of a module based on the Maxim MAX6675 chip and a type “K” thermocouple with a temperature range from 0°C to +600°C. The MAX6675 digital converter provides a digital serial interface compatible with Arduino, Fishino or other microcontrollers
SKU 1606-MODMAX6675EAN 8219671091985Item type: AssembledSensors, Sensors
Description

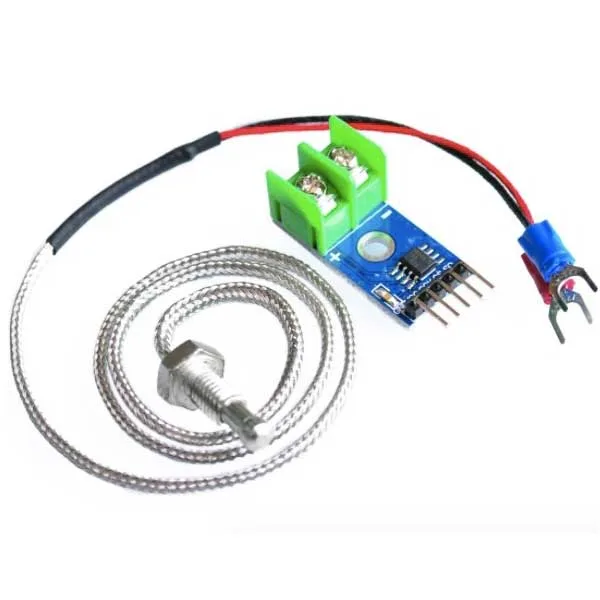

Set consisting of a module based on the MAX6675 chip from Maxim and a type “K” thermocouple with a temperature range from 0°C to +600°C. The MAX6675 digital converter provides a digital serial interface compatible with Arduino, Fishino, or other microcontrollers. With this set, you can measure temperatures between 0°C and 600°C (by changing the thermocouple type, it is possible to reach up to 1024°C) with an accuracy of about 1.5°C and a resolution of 0.25°C. Power supply: 5 Vdc, consumption: about 50 mA.
Technical specifications
- Module pinout:
– “-” terminal: thermocouple negative
– “+” terminal: thermocouple positive
Documentation and useful links
Technical details
| Power supply | from 3.3 to 5 VDC |
|---|---|
| Consumption | about 50 mA |
| K thermocouple temperature range | from 0°C to +600°C |
| Thermocouple cable length | about 500 mm |
| MAX6675 chip reading range | from 0°C to 1024°C – 12-bit resolution |
| Measurement resolution | 0.25°C |
| Module interface | SPI |
| SO | serial output of the module |
| CS | Chip Select |
| SCK | Serial Clock |
| VCC | +5V |
| GND | negative |
| Module dimensions (mm) | 32x15x15 |
| Weight | 30 grams |
