Microchip PIC16C54-XT/P Microcontroller – 18-pin DIP

PIC16C54-XT/P Microchip microcontroller, 18-pin dual in-line - 12 input/output ports - EEPROM/ROM 512.

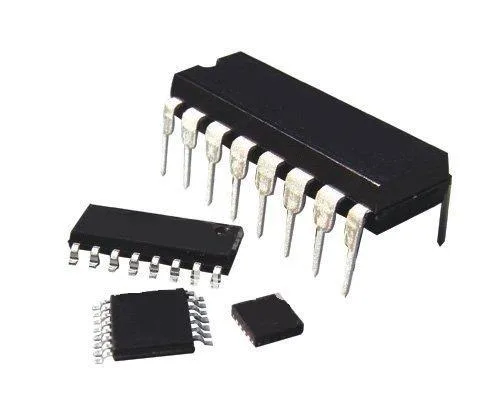

Microchip PIC16C54-XT/P Microcontroller - 18-pin DIP - Image 1

SKU 1340-PIC16C54-XT/PEAN 8219671000437Item type: Assembled

Description

PIC16C54 Microchip IC

PIC16C54-XT/P Microchip microcontroller, 18-pin dual in-line – 12 input/output ports – EEPROM/ROM 512.
 TECHNICAL SPECIFICATIONS
▪ Plastic dual in-line 18-pin package
▪ Supply voltage from 3 to 5.5 Vdc
▪ Current draw < 2 mA at 5 Vdc
▪ 12 input/output ports
▪ RAM memory 25
▪ EEPROM/ROM: 512
▪ Selectable oscillator: RC, XT, HS, LP
▪ Instruction count: 33
▪ 8-bit Real Time Clock/Counter
