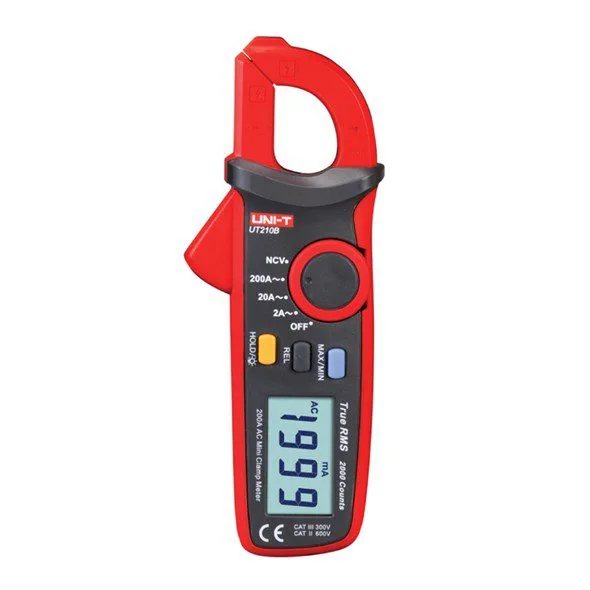

Mini clamp meter + NCV

Mini clamp meter that measures AC currents up to 200 A
Mini clamp meter + NCV - Image 1

SKU 8240-TIP018EAN 6935750521021Brand: UNI-TProduct type: Multimeters & electrical testers

Description

Mini clamp meter that measures AC currents up to 200 A. It has a backlit 2000-count LCD display. Overload protection, non-contact voltage detection (NCV), auto power-off and low-battery indicator. Reliable, efficient and easy to use, perfect for DIY work and for professionals working in electronics. Ideal for checking electronic components, power lines, cable runs and so on. Powered by 2 AAA batteries of 1.5V (included).
Technical specifications
  • Maximum overload protection 200A
  • True RMS
  • NCV
  • LCD size 39.3 millimetres × 26.5 millimetres
  • Automatic power-off after about 15 minutes
  • Low-battery indication by an icon on the display

Technical details

Current ranges 2A / 20A / 200A ± (2.5% + 5)
Display 2000 counts, readings refreshed 2 ~ 3 times per minute
Colour red/black
Operating temperature 0°C ~ 40°C
Relative humidity between 0°C and 30°C 75%, between 30°C and 40°C 50%
Storage temperature -10°C ~ 50°C
Power supply 2 AAA batteries of 1.5 volt (included)
Dimensions 158x60x33.5 mm, maximum jaw opening 16mm
Weight about 150g (batteries included)
