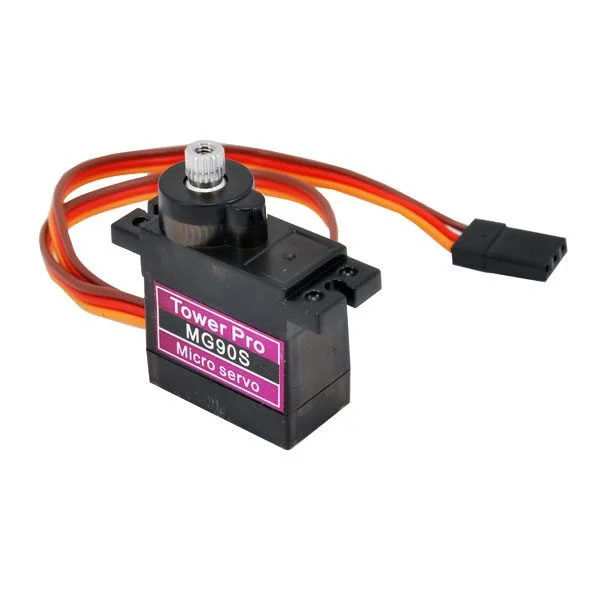

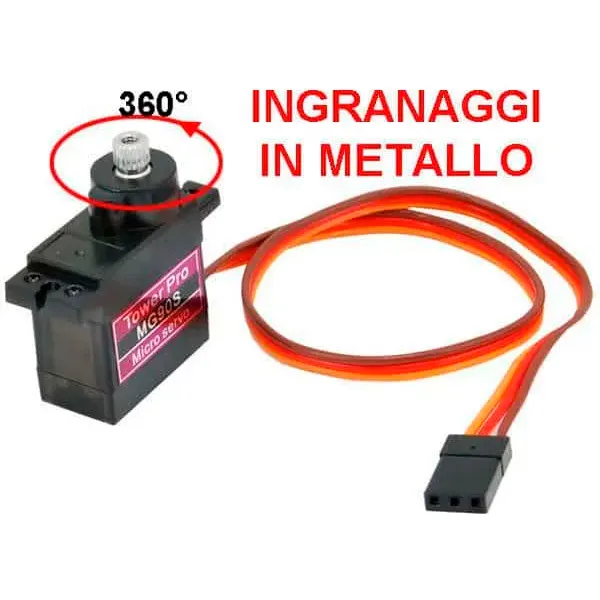

Mini servo motor 1.8kg/cm metal gears 360°
Analogue continuous-rotation mini servo (360°) with metal gears and accessories
SKU 2846-SERVO360M9GEAN 8219671104081Item type: AssembledActuators
Description
| Analogue continuous-rotation mini servo (360°) with metal gears and accessories. Reduction ratio: 320:1, power supply: 4.8 Vdc to 6 Vdc, torque at 4.8V: 1.8 kg•cm, stall current: 300 mA (4.8 V), rotation: 360°, dimensions (mm): 22.6x32x12, weight: 12 grams, operating temperature: -10°C to +50°C, cable length: 240 mm.
Note: servos with metal gears last longer than those with plastic gears and are particularly suited to robotic applications that call for a lot of movement. |
| Connections |
 |
Technical details
| Reduction ratio | 320:1 |
|---|---|
| power supply | 4.8 Vdc to 6 Vdc |
| torque at 4.8V | 1.8 kg•cm |
| stall current | 300 mA (4.8 V) |
| rotation | 360° |
| dimensions (mm) | 22.6x32x12 |
| weight | 12 grams |
| operating temperature | -10°C to +50°C |
| cable length | 240 mm |
