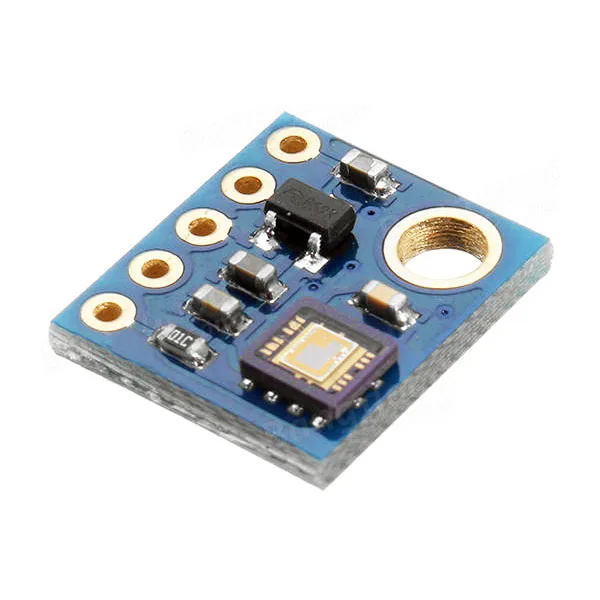

ML8511 UVB Sensor Breakout Board
Small breakout board based on the ML8511 ultraviolet light sensor. It measures the intensity of the UV rays from sunlight, lamps or other sources, with a wavelength between 280 nm and 390 nm
SKU 2846-GYML8511EAN 8219671099073Item type: AssembledSensors, Sensors
Description
Small breakout board based on the ML8511 ultraviolet light sensor. It can measure the intensity of UV rays from sunlight, lamps, or other sources with a wavelength between 280 nm and 390 nm. The sensor outputs an analog voltage that is linearly related to the measured UV intensity (mW/cm²).
Power supply: 3.3 VDC or 5 VDC, consumption: about 2 mA, dimensions (mm): 13.5×11.65×3. Suitable for UV testers, outdoor UV detectors, and germicidal lamp UV detectors.
Technical specifications
- Power supply:
– 5 VDC via GND and VIN pins

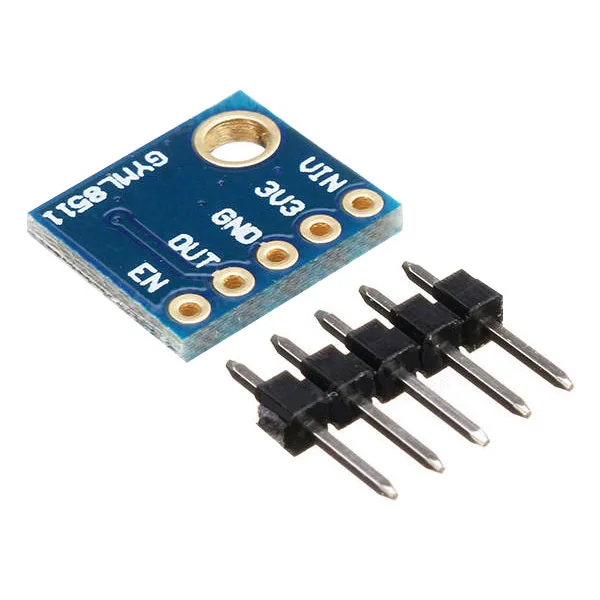

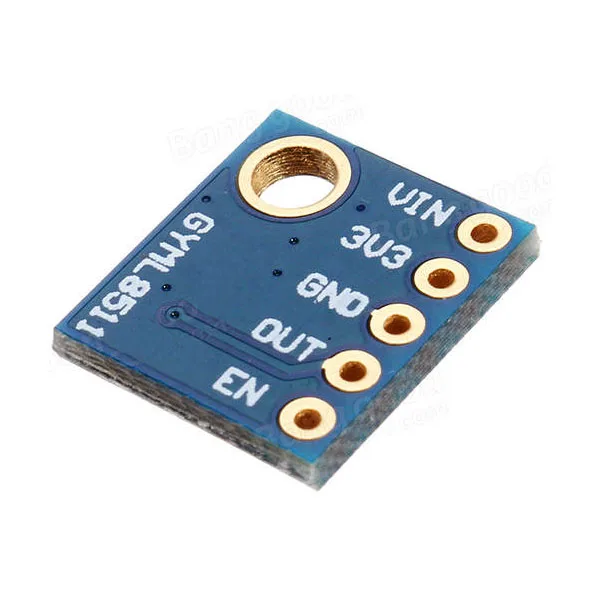

– 3.3 VDC via GND and 3V3 pins - PINOUT
– OUT: output voltage directly proportional to UV radiation intensity
– 3V3: 3.3 VDC power input
– EN: when set to logic level “0”, the module no longer detects UV radiation
Documentation and useful links
Technical details
| Power supply | 3.3 VDC or 5 VDC |
|---|---|
| consumption | about 2 mA |
| dimensions (mm) | 13.5x11.65x3 |
| Current consumption | about 2 mA |
| Measured radiation range | from 280 to 390 nm (UV-A and UV-B) |
| Stabilization time after power-on | up to 2 ms |
| Maximum output current (OUT) | up to 5 mA |
| Operating temperature | from -20°C to +70°C |
| Weight | 2 grams |
| VIN | 5 VDC power input |
| GND | power ground |
