Module with 8 reflective sensors

Module with 8 reflective sensors, each made up of an infrared emitting diode and a phototransistor

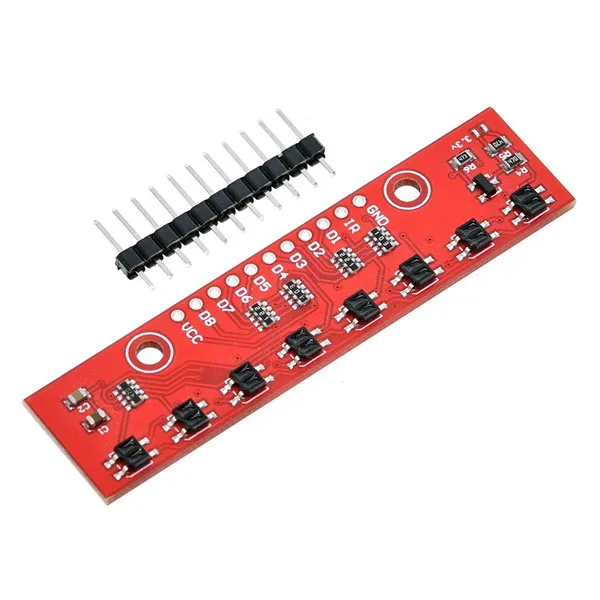

Module with 8 reflective sensors - Image 1

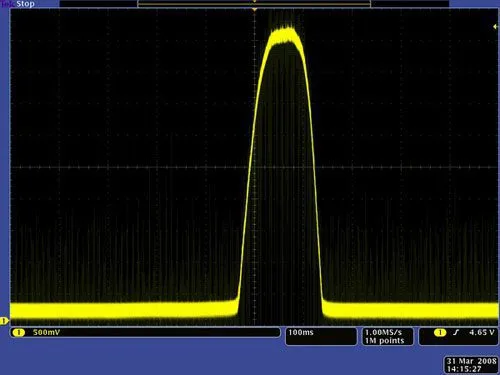

Module with 8 reflective sensors - Image 3

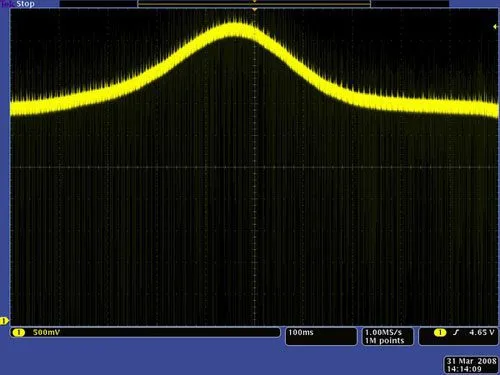

Module with 8 reflective sensors - Image 4

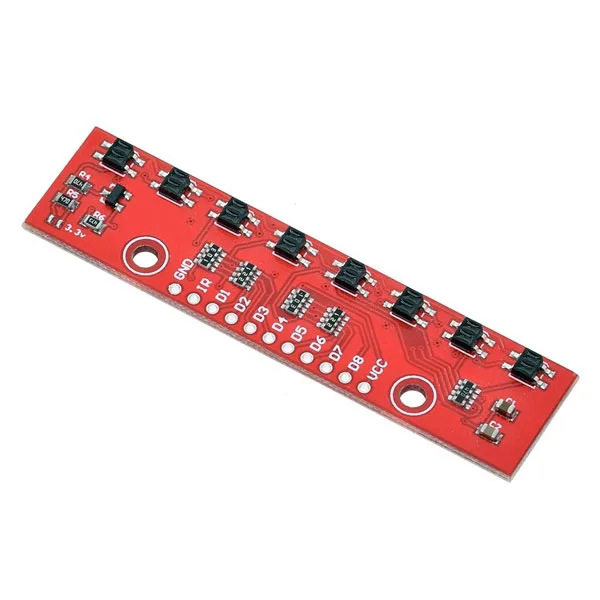

Module with 8 reflective sensors - Image 5

SKU 8300-YQTR8EAN 8219671062862Item type: Assembled,

Description

Module with 8 reflective sensors, each made up of an infrared emitting diode and a phototransistor. Each phototransistor is connected to a pull-up resistor to form a voltage divider. The beam from the emitter is reflected by the surface in front of it and hits the receiver, turning the phototransistor on and producing an analogue output voltage between 0 V and VCC (5 V). All 8 outputs are independent, while the LEDs are wired in pairs to halve the current draw.

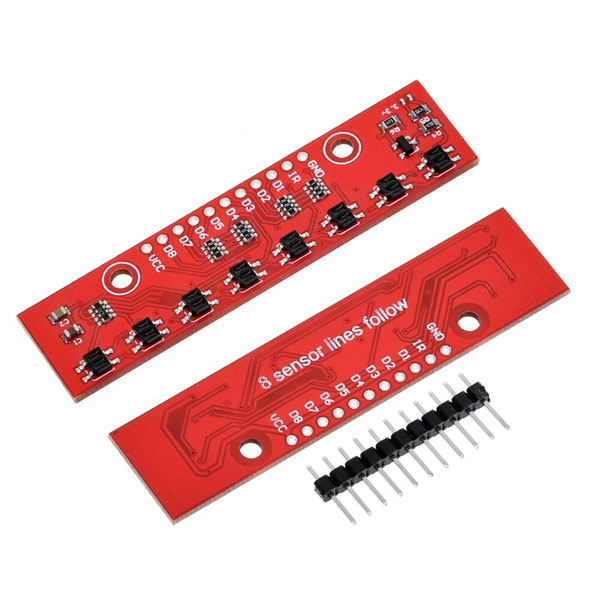

front and rear view

Technical details

Power supply 5 Vdc
Current draw 100 mA
Output format 8 analogue voltages between 0 V and VCC
Optimum sensing distance min. 3 mm / max 6 mm
Dimensions (mm) 66.1x16.1x3.3
Weight 4 grams
