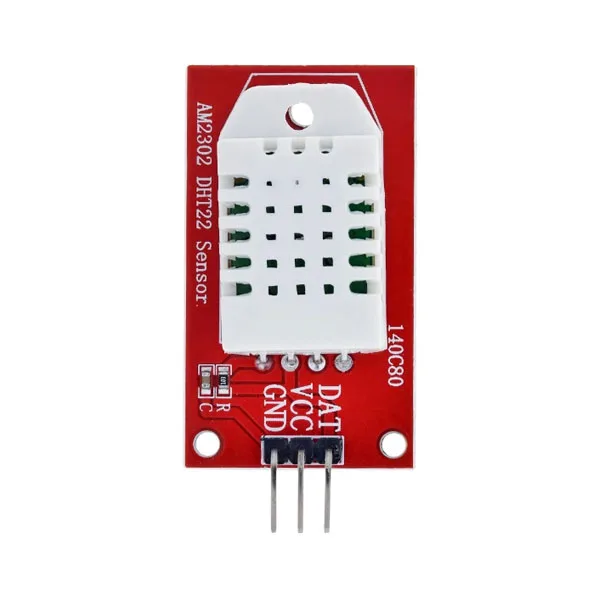

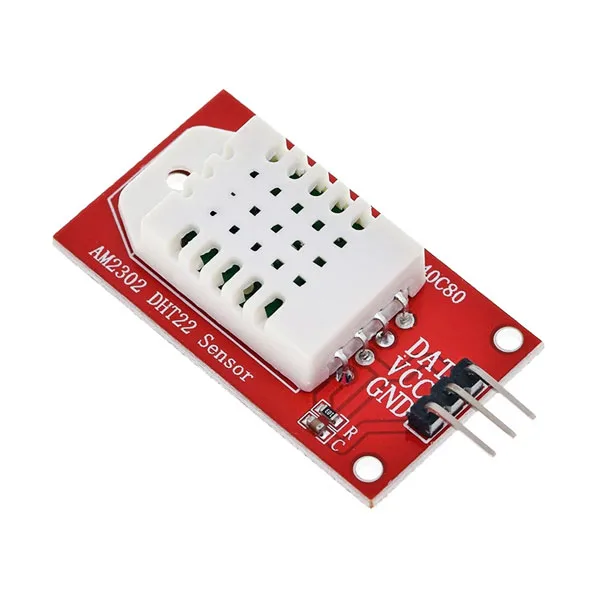

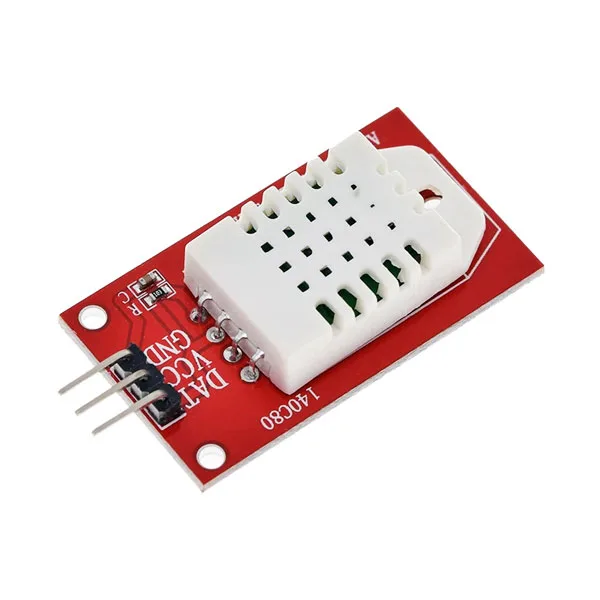

Module with DHT22 Temperature and Humidity Sensor
Compact module based on the DHT22 temperature and relative humidity sensor. It features a single-wire serial interface that makes it easy to use
SKU 8300-MODDHT22EAN 8219671119429Item type: AssembledSensors, Sensors
Description
Compact module based on the DHT22 temperature and relative humidity sensor. It features a single-wire serial interface for easy use. The DHT22 sensor is calibrated with extreme precision; calibration coefficients are stored in OTP memory and recalled during the measurement process, so there is no need to recalibrate the sensor. It is particularly suitable for consumer products, weather stations, HVAC applications (Heating, Ventilation and Air Conditioning), etc.
Technical specifications
- Data output: single-wire serial (not compatible with Dallas One Wire)
- – VCC
– GND
– DATA
Documentation and useful links
Technical details
| Power supply | 5 VDC |
|---|---|
| Current consumption | max. 2.5 mA |
| Humidity range | 0 to 100% with 2-5% accuracy |
| Temperature range | -40°C to +80°C with 0.5°C accuracy |
| Sampling rate | no more than 0.5 Hz (once every 2 seconds) |
| Number of pins | 3 with 2.54 mm pitch |
| Dimensions (mm) | 39x22x10 |
| Weight | 3 grams |
