Oscilloscope and Logic Analyser for Raspberry Pi – assembled

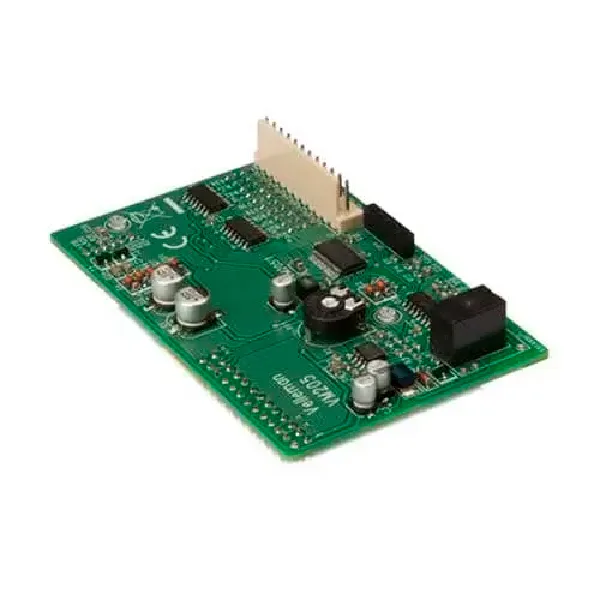

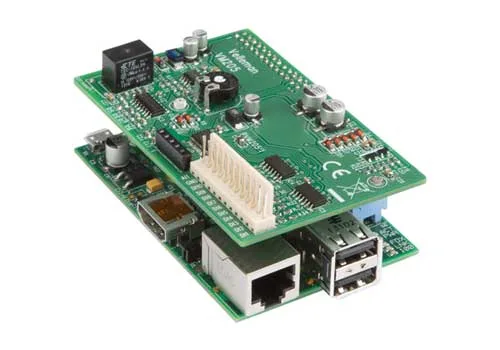

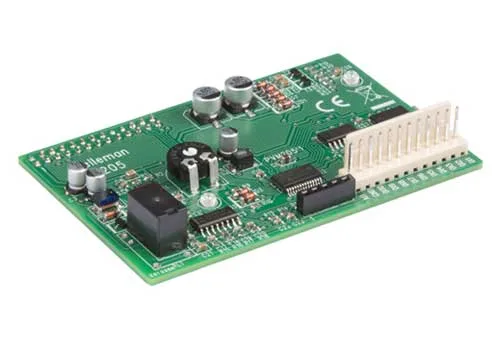

With this shield and a Raspberry Pi (not included) you get an oscilloscope and a 10-channel logic analyser
SKU 8220-VM205EAN 5410329593681Item type: Assembled, Shields & add-onsRaspberry Pi
Description
Thanks to this shield, combined with a Raspberry Pi (not included), you will have an oscilloscope and a 10-channel logic analyzer at your disposal. The source code is also provided, allowing you to develop your own applications.
Technical specifications
- Oscilloscope:
– Measurements can be made up to: 100 kHz
– Time and voltage readout markers
– Frequency readout (via markers) - Logic Analyzer:
– Recording length: 10×800 samples - Warning! not compatible with Raspberry Pi 2 Type B
Technical details
| Maximum sampling rate | 1 MS/s |
|---|---|
| Input amplifier bandwidth | 200 kHz (-3 dB) |
| Input impedance | 100 kohm // 20 pF |
| Maximum input voltage | 30 Vpp (AC + DC) |
| Input coupling | AC+DC |
| AD resolution | 8 bits |
| Recording length | 800 samples |
| Run modes | Run, Single |
| Trigger level adjustable | in 254 steps |
| Time base range | in 15 steps from 5 µs to 200 ms/division |
| Input sensitivity range | in 6 steps, 100 mV/division to 5 V/division |
| Input sensitivity | 3 mV display resolution |

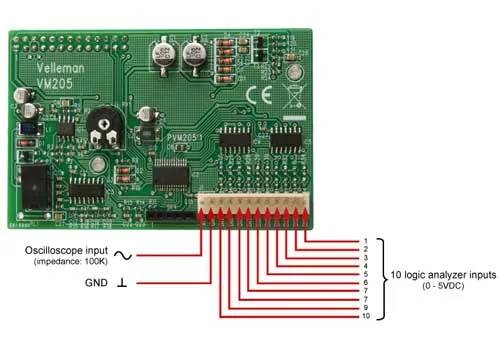

| Number of channels | 10 |
| Max. input voltage | 5 Vdc |
