Panel-Mount Multifunction Mini Timer – 12 VDC

Panel-mount multifunction mini timer with a red LED display for one time (TIMER1) and a green LED display for the other (TIMER2), setting buttons and an output relay that can switch loads of up to 12V/240W and 220V/1500W

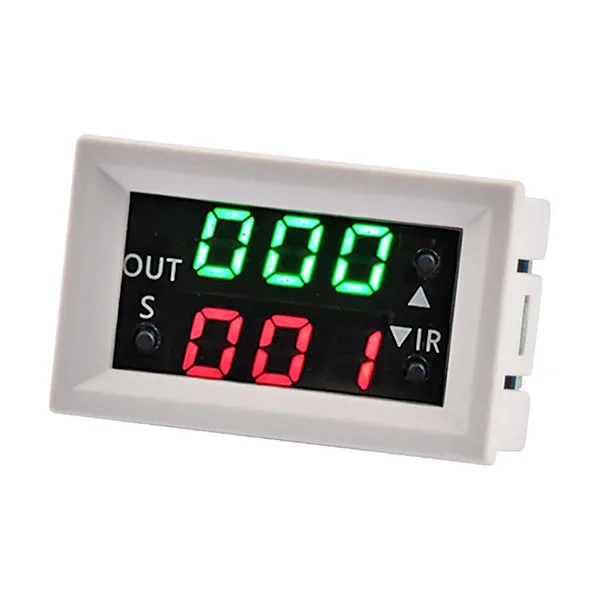

Panel-Mount Multifunction Mini Timer - 12 VDC - Image 1

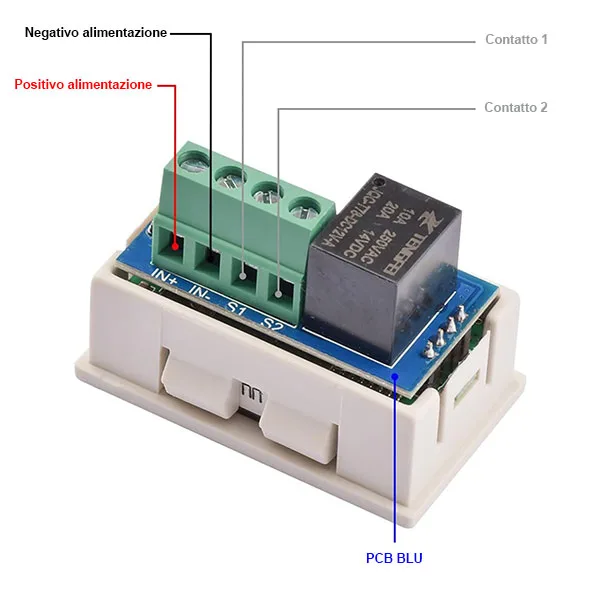

Panel-Mount Multifunction Mini Timer - 12 VDC - Image 3

SKU 8300-DPTIMER12VEAN 8219671104852Item type: Assembled

Description



Panel-mount multifunction mini timer with a green LED display for one time (TIMER1) and a red LED display for the other (TIMER2), setting buttons and an output relay that can switch loads of up to 12V/240W and 220V/1500W.

The time can be set from 0 to 999 seconds, from 0 to 999 minutes or from 0 to 999 hours. You can also pick one of the following operating modes:

  1. At power-up the relay is off; when the time set for TIMER1 runs out the relay switches on. (function P3)
  2. At power-up the relay is on; when the time set for TIMER1 runs out the relay switches off. (function P3)

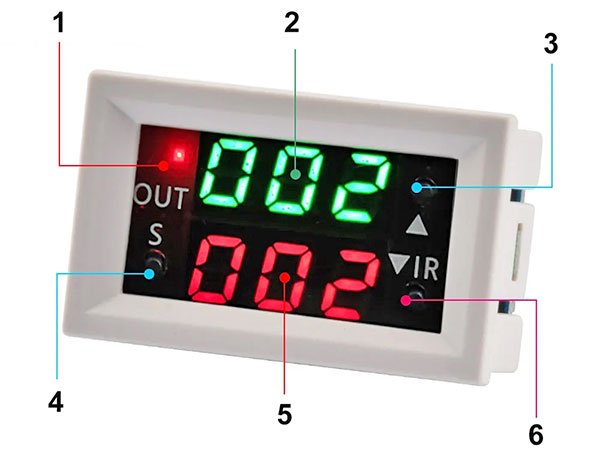

Device overview
  1. Status indicator LED
  2. Increase value button
  3. S button (SET)
  4. Decrease value button | Reset ( hold down for three seconds )
    Product overview

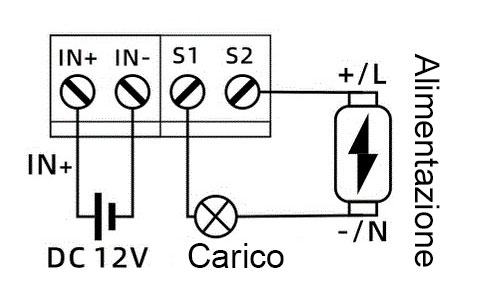

Wiring diagram
DPTIMER12V - Collegamenti
Technical specifications
  • Power: 12V / 240W (for the 12V load), 220V / 1500W (for the 220V load)
General settings

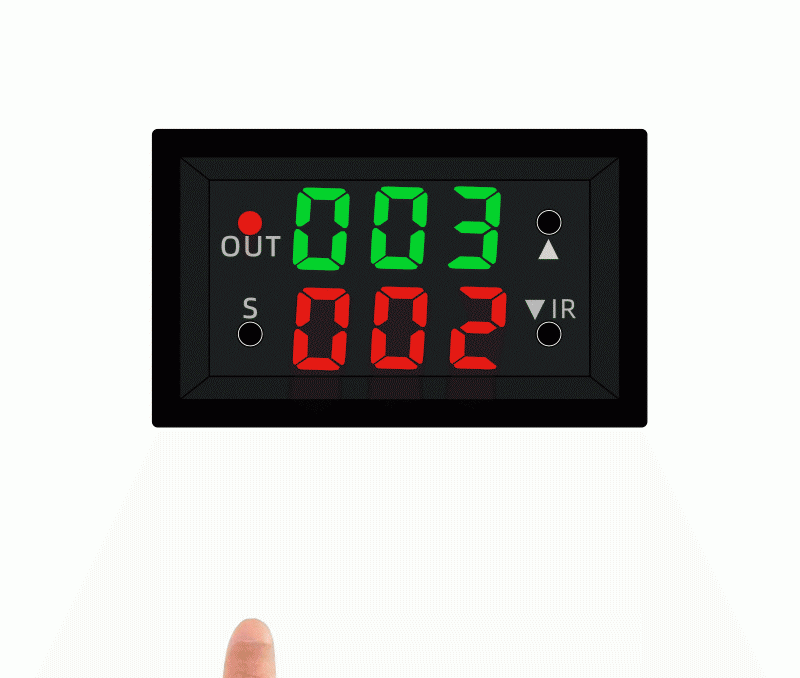

Mini timer multifunzione da pannello – 12 VDC
1) Hold the “S” button down for six seconds to reach the general settings menu
DPTIMER12V - Impostazioni
2) Press the “△” or “▽丨R” button to set the value you want; press the “S” button to move on to the next menu



DPTIMER12V - Impostazioni

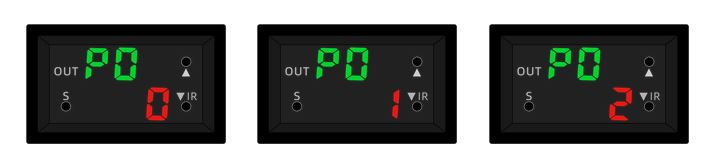

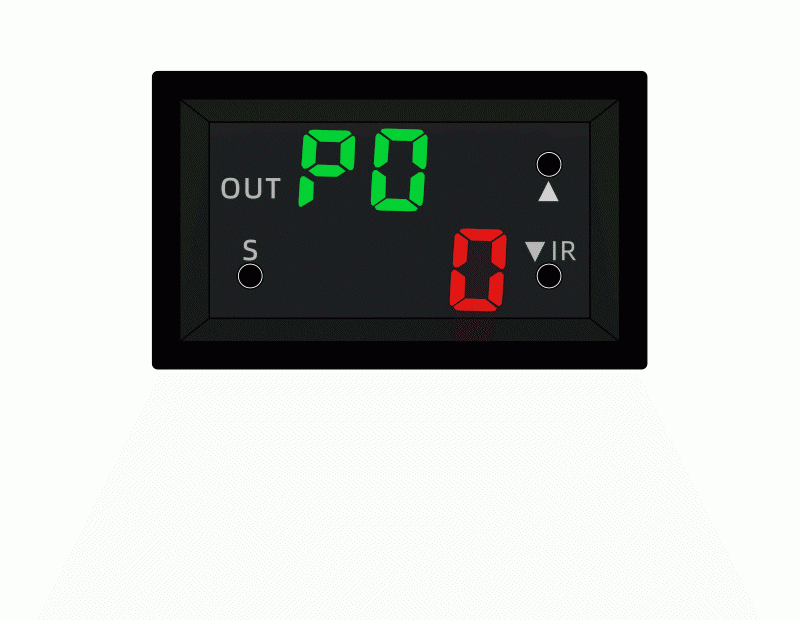

3) P0: setting the value of TIMER1, green
PO – 0 sets the time in seconds (default) | P0-1 sets the time in minutes | PO-2 sets the time in hours



DPTIMER12V - Impostazioni

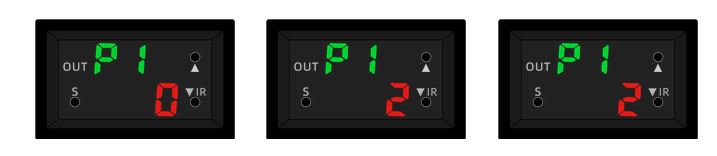

4) P0: setting the value of TIMER2, red
P1 – 0 sets the time in seconds (default) | P1-1 sets the time in minutes | P1-2 sets the time in hours



DPTIMER12V - Impostazioni
5) P2 priority:
on gives priority to TIMER1 | off gives priority to TIMER2



DPTIMER12V

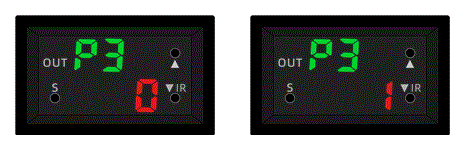

6) Lock setting:
P3-0 lock system disabled (default) | P3-1 lock system enabled



Technical details

TIMER 1 time elapsed since switch-on
TIMER 2 time elapsed since switch-off
Power supply 12 Vdc
Relay dry contact
overall 47.6x28.7x29.6
panel cut-out 44.7x26.2
Weight 23 grams
Operating mode Cyclic / Single cycle
Relay state at power-up On / Off
Times 2 timers (from 0 seconds to 999 hours)
