pH sensor module
Module for measuring the pH level and the temperature of a water-based solution.
SKU 8300-YB427NEAN 8219671102698Item type: AssembledSensors, Sensors
Description

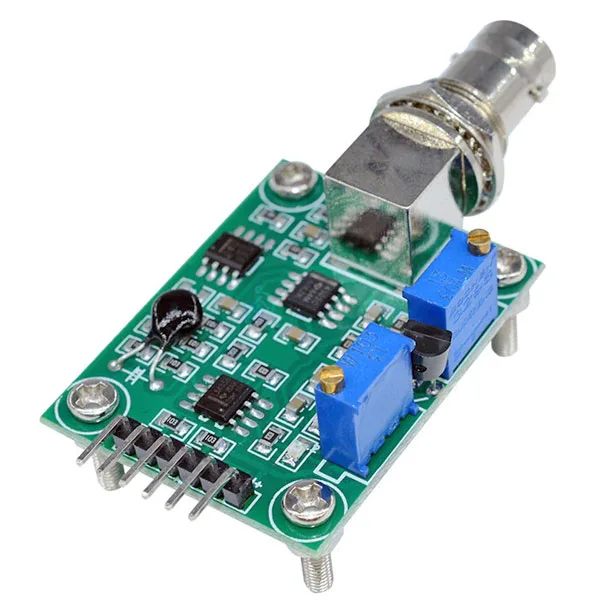

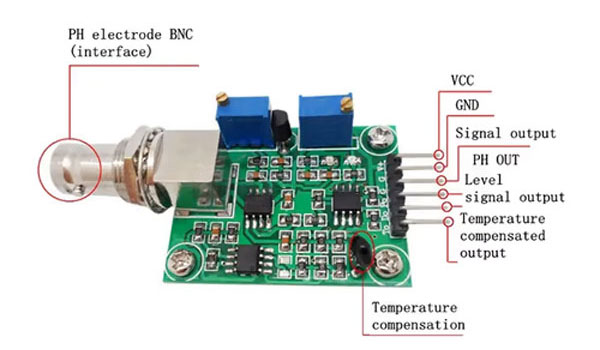

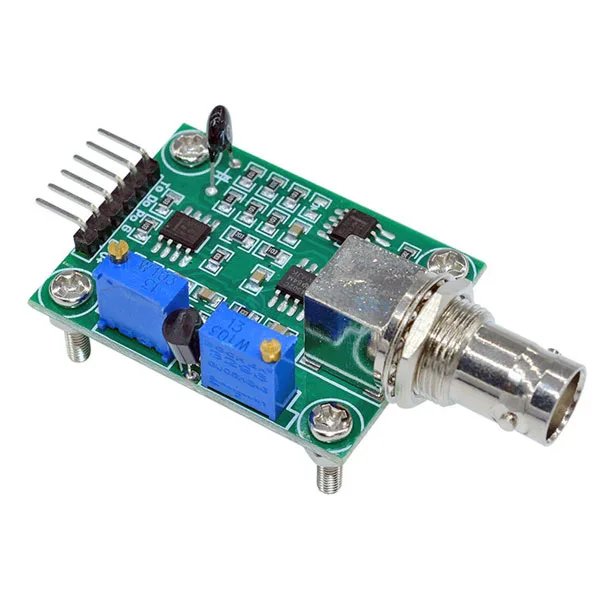

| Module for measuring the pH level and the temperature of a water-based solution. It lets you build a low-cost pH meter that is extremely accurate and dependable. It has an LM35 temperature sensor on board, a BNC connector and a pH2.0 interface. To use the module you simply connect a pH probe to the BNC connector and the pH2.0 interface to the analogue input port of a board such as Arduino or Fishino. |
| Technical features |
 |
|
| Applications |
|
Technical details
| Supply voltage | 5 ±0.2V (AC – DC) |
|---|---|
| Current draw | 5-10 mA |
| pH scale | 0-14 (7 = neutral pH) |
| Temperature measuring range | 0°C to +80°C |
| Response time | 5 seconds |
| Settling time | 60 seconds |
| Power consumption | 0.5 watt |
| Operating temperature | -10°C to +50°C |
| Ambient humidity | 95%RH (nominal humidity 65%RH) |
| Dimensions (mm) | 42x32x20 |
| Output | analogue voltage signal output |
